The iconic 3dfx Voodoo graphics processing units (GPUs), which dominated the late 1990s and early 2000s, have remained a topic of great interest for aficionados and collectors alike. These GPUs represent a formative era in computer graphics, but they were designed exclusively for desktop computers, as mobile computing hardware lagged behind in performance during that era. However, a dedicated enthusiast recently accomplished the remarkable feat of integrating a 3dfx Voodoo 4 desktop GPU into a laptop.
The pioneer behind this impressive engineering project selected the Dell Precision M4800, a robust 15.6-inch workstation laptop from 2013, as the base for this retro-modern fusion. The laptop was originally equipped with high-end specs for its time, including an Intel Core i7 processor, 32 GB of DDR3 RAM, and an Nvidia Quadro K2100M GPU. Despite the substantial size of the workstation, the integration of the Voodoo 4 GPU required significant ingenuity and customization.

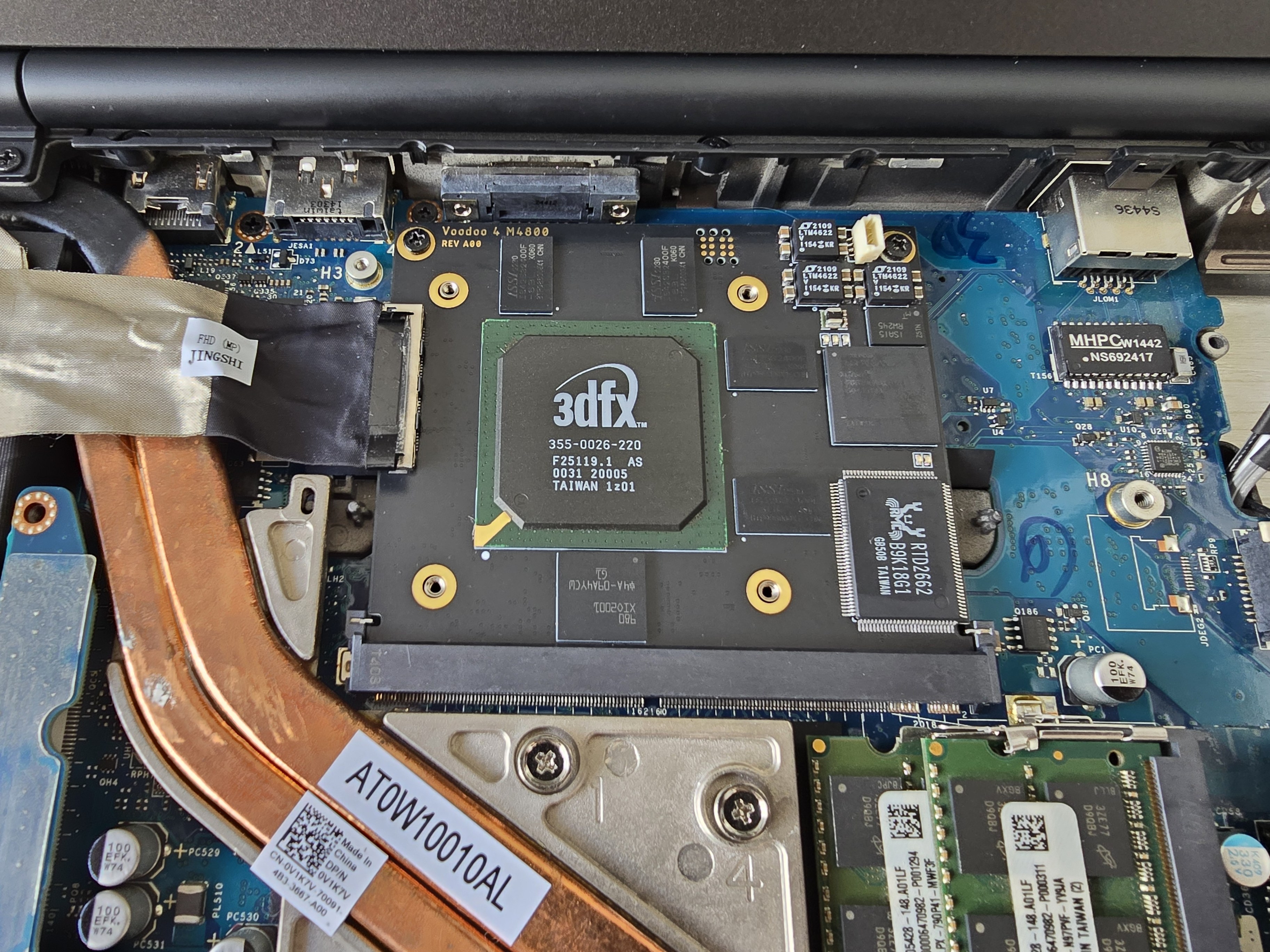

To start the modification, a custom-made MXM (Mobile PCI Express Module) printed circuit board (PCB) was created, significantly smaller than the original desktop version. The reimagined PCB was densely populated to accommodate not only the Voodoo 4 chip but a range of other necessary components as well. These included a PCI-to-PCI bridge, a field-programmable gate array (FPGA), a resolution scaler typically found in monitors, a microcontroller, power supplies, and other vital circuits.
The reworked GPU boasted a substantial upgrade to 64 MB of video RAM (VRAM), doubling the original 32 MB found in the standard Voodoo 4 4500 model. To facilitate debugging, the modder crafted an MXM carrier board that interfaces with a traditional desktop PC through a PCIe slot.
The effort ultimately yielded a fully operational MXM board capable of supporting resolutions ranging from 640 x 480 to 1600 x 1024 pixels. Though the Dell’s native 1080p display presented compatibility challenges with the VSA-100 chip, the GPU showcased its capabilities by scoring an impressive 1694 points in the 3DMark 2001SE benchmark at a resolution of 1024 x 768, using only the default settings. When connected to a desktop setup, leveraging the full VRAM capacity and an overclock rate of 192 MHz, the GPU achieved a remarkable score of 2035 points, setting a new performance record for a Voodoo 4.
While this modding triumph brought a historic GPU back to life in a modern context, there were some obstacles and compromises. For instance, not all resolutions functioned flawlessly, and images appeared slightly shifted. Furthermore, operational temperatures were on the higher end, although they remained within the tolerated range for the technology of that time.
The integration of a legacy 3dfx Voodoo 4 GPU into a laptop marks a fascinating blend of different computing eras and highlights the enduring enthusiasm for vintage hardware. It also showcases the ingenuity and technical skill within the modding community, who continue to push the limits of what’s possible with existing technology. This project exemplifies the creative spirit and nostalgia that drive the ongoing celebration and rediscovery of classic computing milestones.
