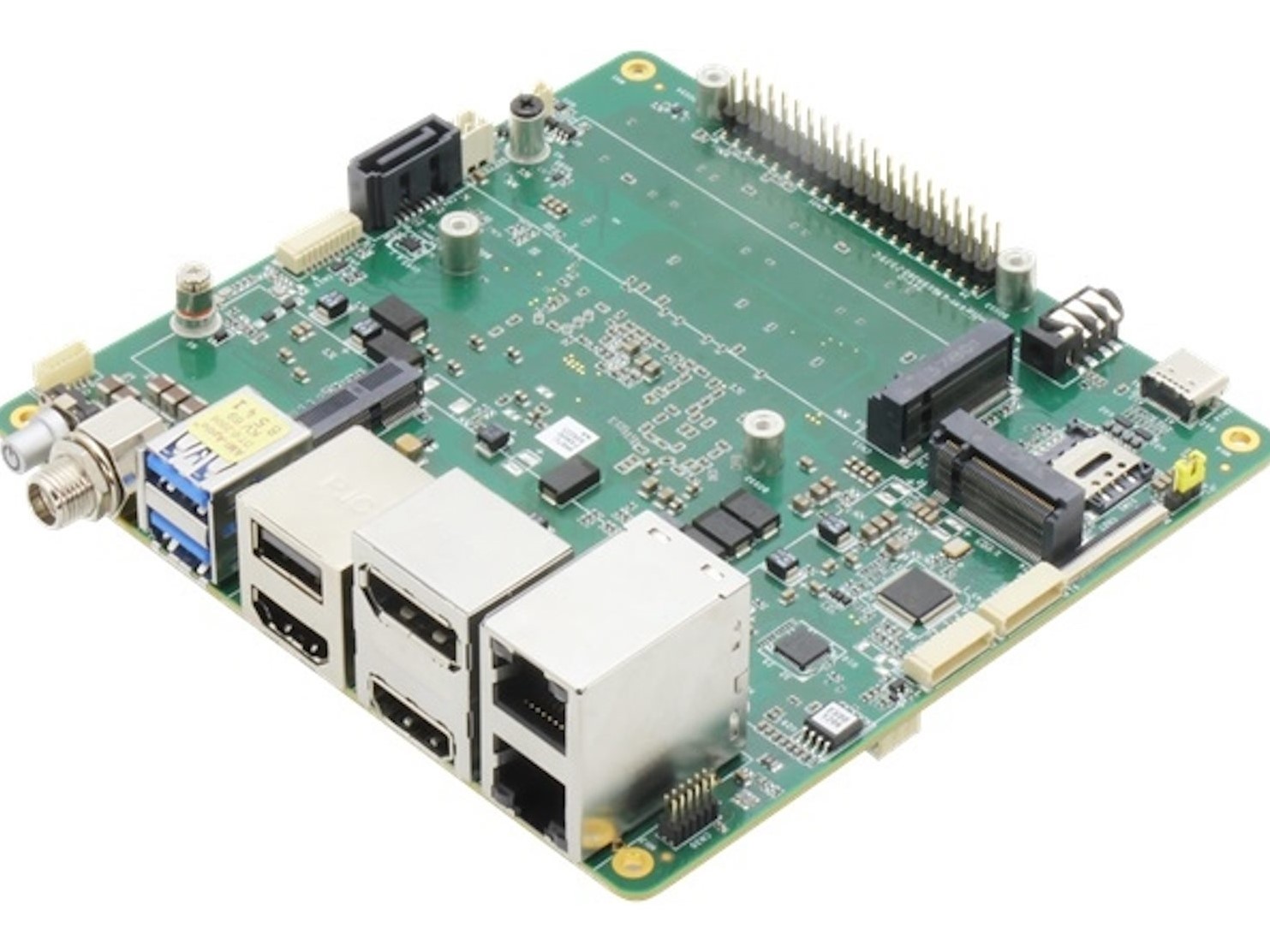

The market for single-board computers (SBCs) has seen an exciting new addition with the introduction of the UP Xtreme i14. This new SBC from AAEON challenges the dominance of mainstream choices like the Raspberry Pi by offering potent Intel processors and a suite of high-powered features.
Differing from typical Raspberry Pi models, the UP Xtreme i14 boasts standard Intel processors making it capable of running operating systems such as Windows 10, Windows 11, and Ubuntu. Potential users can select from a range of Intel CPUs including the Intel Core Ultra 5 125U, 125H, 135U, 135H, Intel Core Ultra 7 155U, 155H, 165U, and Intel Core Ultra 7 165H. The board comes with a substantial 64 GB of LDDR5 RAM, which is not upgradable due to its fixed onboard installation.
Storage solutions are flexible, even if no eMMC storage is included. Users can utilize an M.2 2280 SSD and also have the option of connecting an additional SSD or a conventional magnetic hard disk through a SATA port.
The UP Xtreme i14 is not shy on connectivity options, as evidenced by the inclusion of four monitor outputs that support high-resolution display content. This is made possible through two HDMI 2.1 ports, a DisplayPort 2.1 port, and a USB-C port which also supports DisplayPort 1.4. Additionally, two USB 3.2 Gen 2 ports in Type A fashion are available for high-speed connections of storage drives and peripherals.
Visual data can be introduced via a MIPI-CSI interface, ideal for camera connections. Networking capabilities include a 2.5 GBit/s Ethernet port, while expansion slots consist of M.2 2230 and M.2 3052 for enhancing the system with a cellular modem if needed. Serial devices are catered for with two RS-232/422/485 ports, and the 40-pin GPIO header adds further flexibility. The UP Xtreme i14 also touts AI computing capabilities with an impressive AI performance of up to 32 TOPs, making it suitable for AI-driven tasks and applications.
The compact dimensions of the board, measuring 120.35 x 122.5 mm, make it a versatile option for various computing projects requiring footprint-conscious hardware with powerful specs. However, due to the processing power, active cooling solutions would be necessary to manage the system’s heat output.
For those interested in acquiring the UP Xtreme i14, pricing and availability details are yet to be released. Prospective buyers are encouraged to reach out to the manufacturer for more information.
In summary, the UP Xtreme i14 poses as a robust alternative to common SBCs, combining Intel’s computational strength with a bevy of features aimed at allowing users to tackle a multitude of advanced computing tasks, including AI projects, all on a single board. All of these capabilities make it an attractive option for innovators and tech enthusiasts looking for significant performance in a compact form factor.
