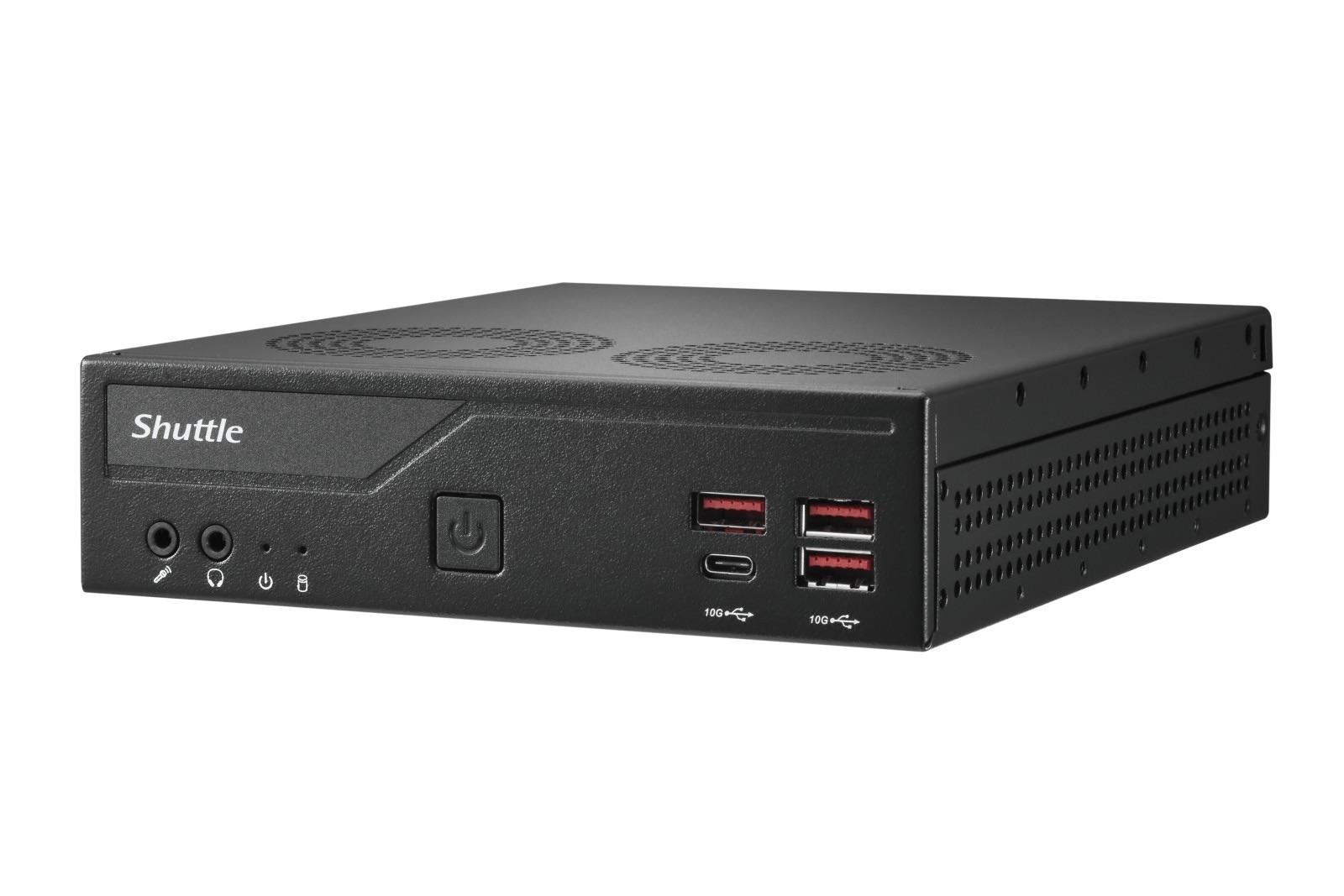

Shuttle has expanded its XPC slim range with a new compact mini PC designed for people who want desktop-class Intel performance in a small, space-friendly box. Called the Shuttle XPC Slim DB860, this latest model supports Intel’s Arrow Lake-S processors and packs a strong set of ports, storage options, and memory capacity that makes it a serious candidate for office setups, industrial workspaces, and anyone who needs lots of connectivity without a full-size tower.
At the heart of the DB860 is an LGA1851 socket, which means it can run Intel Arrow Lake-S desktop CPUs rather than low-power mobile chips. Because the chassis is compact and actively cooled, Shuttle limits processor support to models with a maximum 65W TDP. In practical terms, that rules out higher-wattage unlocked processors, but still leaves a wide range of powerful 65W options on the table. That includes CPUs like the Core Ultra 5 225, Core Ultra 7 265, and Core Ultra 9 285. The Core Ultra 9 285 is particularly notable since it can be configured with up to 24 cores, offering strong multi-core performance for heavier workloads.
Memory is another highlight. The Shuttle DB860 supports up to 96GB of DDR5-5600 RAM using two SODIMM slots, which is a big deal for users who run virtual machines, handle large datasets, or keep many applications open at once. As expected for a mini PC in this size class, there’s no discrete GPU support—this system is built around integrated graphics and efficient desktop computing rather than gaming-class expandability.
Despite its small footprint, the DB860 is designed to be easy to place in tight spaces. The metal chassis measures about 19 x 16.5 x 4.3 cm (7.4 x 6.5 x 1.7 inches) and the system weighs around 1.3 kg (2.87 lbs), making it a practical fit for desks, kiosks, back rooms, or clean workstation layouts where a bulky PC would be inconvenient.
One of the DB860’s biggest strengths is its connectivity. Shuttle includes an unusually generous port selection for a slim mini PC, aimed at both modern peripherals and more specialized equipment. Ports and I/O include:
Three USB 3.2 Gen 2 Type-A ports
Four USB 3.2 Gen 1 Type-A ports
One USB 3.2 Gen 2 Type-C port
USB4 support (including DisplayPort 1.4a and up to 3A charging)
2.5Gb Ethernet plus 1Gb Ethernet
HDMI 2.1, HDMI 2.0, and DisplayPort 1.4a
Dual RS232 serial ports
Audio input/output
That dual-Ethernet plus RS232 combination is especially appealing for business environments, automation, point-of-sale, and industrial deployments where legacy and professional connections still matter.
For storage, Shuttle gives users fast and flexible options. The DB860 includes an M.2 2280 slot that supports PCIe 5.0 x4 for high-speed NVMe SSDs, along with a 2.5-inch SATA III bay for additional storage—useful for larger-capacity drives or backups. There’s also an M.2 2230 slot for Wi-Fi and Bluetooth add-on cards, and Shuttle notes that buyers who need mobile connectivity can choose an optional LTE module.
Pricing hasn’t been publicly detailed yet, and availability may depend on order volume and channel. Still, the feature set makes the Shuttle XPC Slim DB860 an interesting mini PC for anyone who wants Arrow Lake-S desktop CPU support, up to 96GB DDR5 RAM, PCIe 5.0 storage capability, and an excellent selection of ports in a truly compact design.
