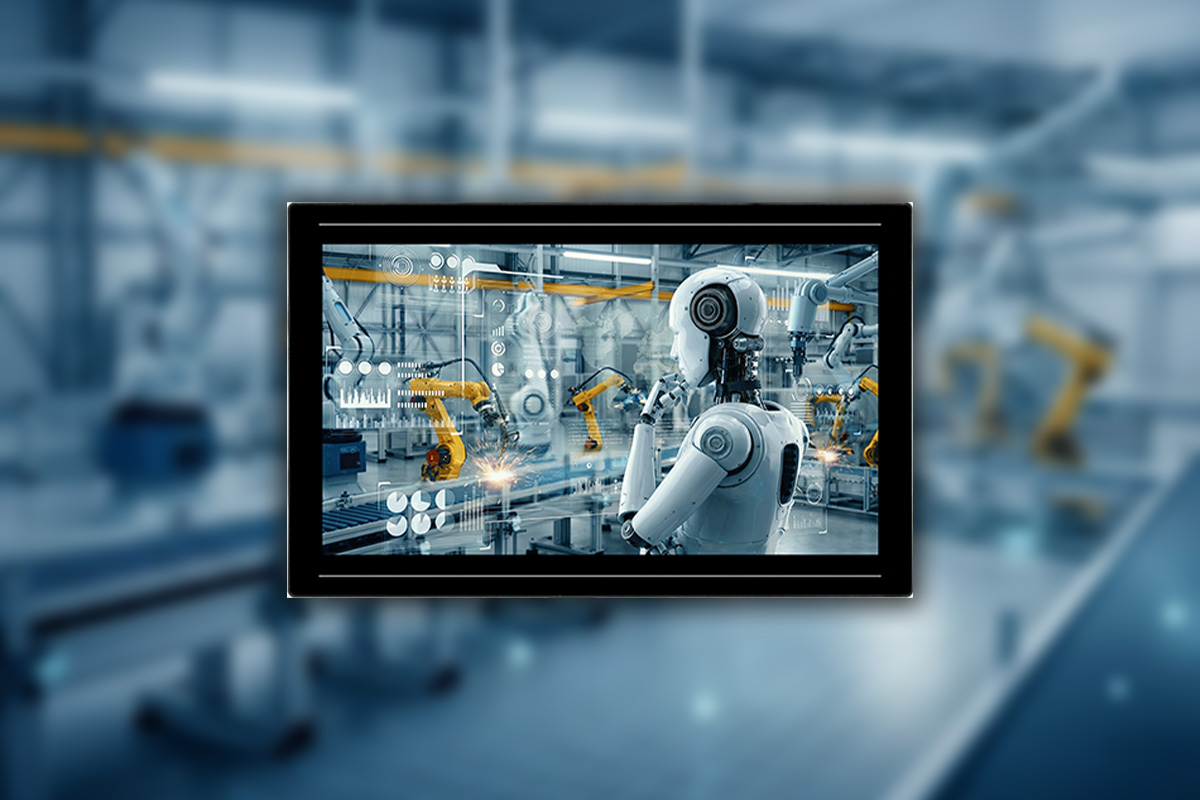

Nexcom has introduced the APPC160 C21-01, a 15.6-inch fanless industrial panel PC aimed at system integrators, HMI deployments, factory automation, and edge AI workloads in smart manufacturing environments. Built for harsh shop-floor conditions, it pairs a modern Intel processor with a sealed, rugged front design and strong wired connectivity, making it a practical fit for industrial IoT projects where reliability matters as much as performance.
At the heart of the APPC160 C21-01 is the Intel Core Ultra 5 Processor 125U, offering 12 cores and 14 threads while keeping power draw efficient with a 15W TDP class design. That combination is designed to handle responsive HMI performance, data collection from multiple endpoints, and on-device processing for edge AI scenarios without relying solely on cloud compute. For memory and storage, the system supports up to 32GB of DDR5-5600 RAM and fast PCIe 4.0 M.2 SSDs, helping it stay snappy for multitasking and industrial applications that continuously log and process data.
One of the biggest selling points is its industrial-ready build. The slim-bezel front panel carries an IP65 rating, helping protect against dust ingress and water exposure from the front side—useful for production floors and machinery areas where splashes and particulate are common. The unit keeps cooling silent and low-maintenance with a fanless design, using a heatsink-based approach to reduce moving parts and improve long-term uptime.
The integrated display is a 15.6-inch Full HD (1920 x 1080) panel with 10-point projected capacitive touch. It’s designed for frequent interaction, featuring 7H surface hardness for durability. Brightness is specified up to 400 nits, along with a 1000:1 contrast ratio, 16.7 million colors, and wide 178-degree viewing angles, supporting clear visibility across typical industrial viewing positions.
Connectivity is a major highlight. Nexcom includes four Gigabit Ethernet ports powered by Intel I210 controllers, enabling the panel PC to interface with multiple IP-based devices at once—such as PLCs, IP cameras, sensors, gateways, or separate industrial subnets. For peripherals and expansion, it also provides four USB 3.2 Gen1 ports and a DB9 serial port, which remains important in many industrial environments that still rely on legacy serial equipment.
Wireless options are also supported via an M.2 Key E 2230 slot for Wi‑Fi and Bluetooth modules, and the chassis includes four dedicated antenna holes to help ensure stable reception in challenging environments.
Power flexibility is another practical advantage for industrial installs. The APPC160 C21-01 supports 12V, 19V, or 24V DC input, fitting common factory power standards. Security is addressed with TPM 2.0 support, which can help with device integrity and OS-level protection in managed deployments.
Physically, the system stays compact for a panel PC, measuring 388.1mm x 245.3mm x 67.6mm. It supports VESA 100 mounting and wall mounting, making it easier to integrate into control cabinets, kiosks, machinery frames, and production stations. On the compliance side, it’s CE and FCC Class A certified. Software support includes Windows 11 IoT, Windows 10 IoT, and Ubuntu, covering common industrial and embedded deployment preferences.
There are a couple of limitations potential buyers may want to consider before specifying it for a project. Video output is limited to HDMI 1.4 rather than newer standards like HDMI 2.1 or DisplayPort, which could matter for certain high-refresh or advanced display setups. Expansion may also feel constrained for use cases that require extensive add-in hardware, since the system offers a single Mini PCIe slot—fine for many builds, but not ideal for deployments that demand a larger ecosystem of proprietary expansion cards.
Availability is another detail to note: at the time of writing, the APPC160 C21-01 isn’t listed for direct online purchase. Interested buyers and integrators typically need to submit an inquiry to request pricing, lead times, and ordering details.
For organizations building industrial HMI stations, edge AI inspection nodes, or automation control points that need a fanless design, an IP65-rated front panel, and quad Gigabit Ethernet, the Nexcom APPC160 C21-01 shapes up as a focused, factory-oriented panel PC with a strong balance of performance, durability, and connectivity.
