In 2023, the tech world welcomed a new era of blazing-fast PCIe Gen5 NVMe SSDs, boasting impressive read and write speeds of up to 10,000 MB/s. With continued advancements, SSDs rapidly evolved, bringing even greater speeds to the masses, supported by mainstream AMD and Intel boards.
Among the frontrunners in this SSD revolution is Crucial, known for its high-performance offerings like the T700 and T705. Now, Crucial has expanded its lineup with the P510, a Gen5 SSD designed for mainstream users seeking top-notch performance without breaking the bank.
Let’s delve into what sets the Crucial P510 1 TB SSD apart. Powered by the Phison E31 controller and selling at a competitive price of around $120, it promises high-speed storage with Gen5 architecture at its core. This NVMe SSD features TLC-based 3D NAND flash, offering capacities up to 2 TB, optimized performance, and efficient power usage.
Under the hood, the Phison E31 controller, built on a 7nm process, employs a single-core Cortex R5 CPU. While it forgoes a DRAM cache in favor of an HMB (Host Memory Buffer), it supports Phison’s latest LDPEC, ECC, and RAID ECC technologies. With a power draw of just 5W, it handles both 3D TLC and QLC NAND, reaching flash rates up to 3600 MT/s. Notably, it uses Micron’s 276-layer G9 3D TLC NAND Flash, promising performance metrics of 11,000 MB/s read and 9500 MB/s write speeds, along with 600 TBW endurance.

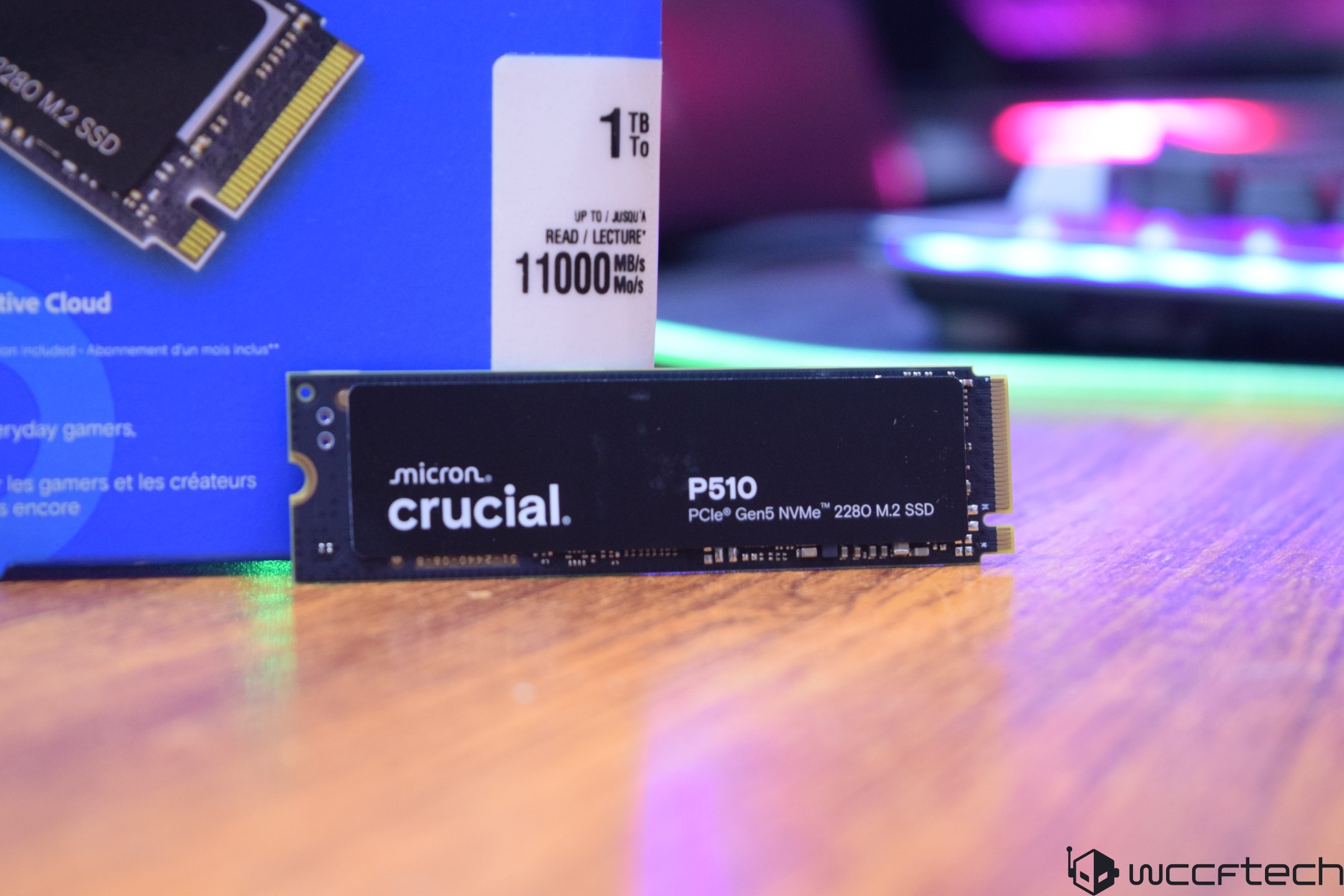

As we unbox the Crucial P510 1 TB SSD, it comes in a sleek white and blue package, prominently displaying its 1 TB capacity and a reassuring 5-year warranty. Inside, the SSD is securely encased in a clamshell plastic for protection, alongside a helpful manual.
The SSD itself is available in variants with or without a heatsink; our review focuses on the heatsink-less model. Up front, it features a single NAND Flash chip and the reliable Phison E31 Gen5 controller.
To put the P510 to the test, we used a robust setup comprising an Intel Core i9-13900K processor and an MSI Z790 ACE motherboard, complemented by 32 GB of G.Skill DDR5 memory and the MSI GeForce RTX 4090 SUPRIM X graphics card. This high-performance platform is well-suited for evaluating modern SSDs.
When it comes to performance benchmarks, the Crucial P510 1 TB SSD shines, offering competitive speeds and reliable performance akin to its high-end Gen5 counterparts.
For enthusiasts and mainstream users alike, the Crucial P510 delivers exceptional value, pairing cutting-edge Gen5 capabilities with an attractive price point. It’s a compelling choice for those looking to elevate their storage experience without exceeding their budget.To explore the maximum transfer speeds of some of the latest Gen 5 drives, a 100 GB file was employed to push these storage solutions to their limits.
The lineup included some intriguing contenders: the MSI Spatium M580 Frozr 4 TB, KLEVV Genuine G560 2 TB, MSI Spatium M570 PRO Frozr 2 TB, ADATA Legend 970 Pro 2 TB, Team Group T-Force CARDEA Z540 2 TB, and PNY XLR8 CS3150 2 TB.
To truly gauge the performance, the PCMark 10 Storage Benchmark was utilized. This tool goes beyond synthetic tests, offering real-world performance insights by simulating tasks from Adobe Creative Suite, Microsoft Office, and popular games. It effectively highlights differences by testing both system and external drives.
The Forspoken DirectStorage Benchmark provided additional testing, further ensuring comprehensive performance evaluation.
In conclusion, Gen 5 SSDs have become not only more affordable but also cooler compared to last year. Previously priced around $350-$400, these drives were initially limited to speeds of 12-12.4 GB/s. Now, many surpass 14 GB/s, showing significant technological maturity and cost improvements as more options hit the market.
There is growing interest in these products among mainstream users looking to upgrade to the latest AMD and Intel platforms. This opens avenues for more budget-friendly solutions based on entry-level Gen 5 SSD controllers like Phison’s E31. Enter the Crucial P510 SSD.
The Crucial P510 offers a solid entry into the Gen 5 space, balancing performance with cost-effectiveness. Although it uses a DRAM-less Phison E31T design, which might slightly reduce its peak performance, it remains a substantial leap ahead of Gen 4 SSDs. Priced at just $119, it presents a compelling choice for those seeking faster, cooler storage solutions for mainstream PCs.
