MSI is refreshing its AM5 lineup with two eye-catching, white-themed motherboards that blend standout aesthetics with serious hardware chops: the compact MPG X870I Edge Ti EVO WiFi and the feature-packed MAG X870E Tomahawk MAX PZ. Both target builders chasing clean designs, next-gen connectivity, and smarter Ryzen tuning tools.
After showcasing its X870E, X870, and B850 platforms at Computex 2025, MSI is rounding out the range with boards that push IO, BIOS-level tuning, and usability forward. Interest in AMD Ryzen systems continues to climb, and these models are clearly tuned for that momentum.

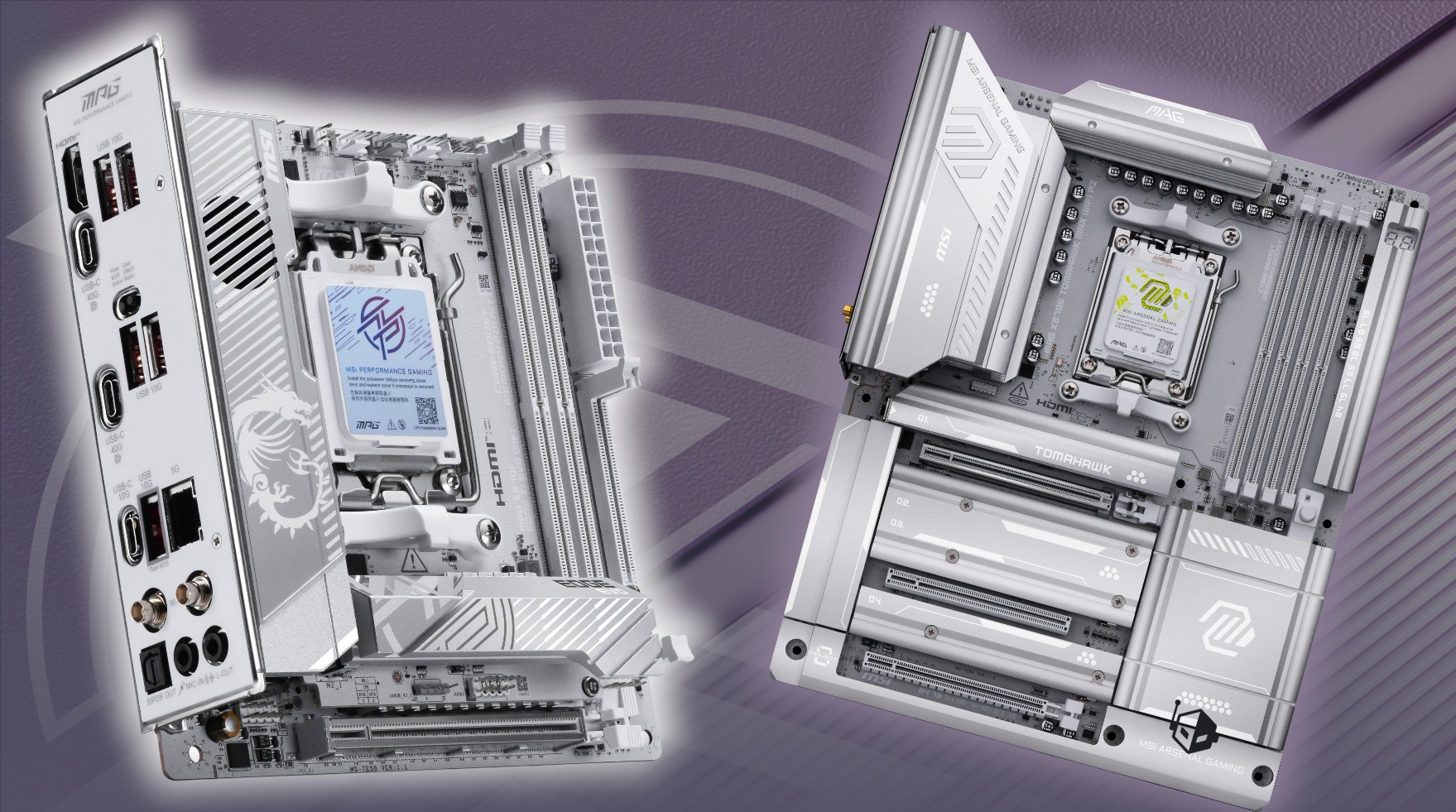

MPG X870I Edge Ti EVO WiFi: small form factor, big-league features
This Mini-ITX AM5 board is built for compact, high-performance rigs without compromise. Power delivery is handled via a single 8-pin CPU connector, with actively cooled VRMs under an aluminum heatsink to keep thermals in check. Two DDR5 slots support up to 128 GB, and a full PCIe 5.0 x16 slot gives modern GPUs the bandwidth they need.
The rear IO leans heavily into speed and flexibility: five USB 10 Gbps Type-A ports, two USB 40 Gbps Type-C ports, one USB 10 Gbps Type-C, HDMI-out, a 5 GbE LAN port, Wi-Fi 7 with dual-antenna support, audio jacks, and dedicated Flash BIOS and Clear CMOS buttons for painless updates and troubleshooting.
Storage and expansion are cleverly engineered. A PCIe Gen5 x4 M.2 slot sits on a layered, multi-PCB module over the PCH with its own heatsink, and that module also adds a USB header and an ARGB header for cleaner cable runs. A second specialized PCB slots in beside the DIMMs to deliver extra connectivity: two SATA III ports, a USB4 Type-C header, a USB Type-A port with 27 W power delivery, and the MSI JFP front-panel header. It’s an inventive layout that packs workstation-class functionality into a tiny footprint, making it a compelling choice for SFF enthusiasts.
MAG X870E Tomahawk MAX PZ: all-white, all-out connectivity with backside headers
If you prefer a full-size, ultra-clean build, the MAG X870E Tomahawk MAX PZ brings a cohesive white aesthetic and a VRM setup that’s unusually robust for a mainstream-tier board. Expect four DDR5 DIMM slots supporting up to 256 GB and very high-speed memory profiles, with MSI targeting 8000+ MT/s.
Expansion is generous: three x16-length PCIe slots with the top slot running full PCIe 5.0, plus four M.2 slots under white heatsinks for stealthy, high-speed storage. The top Gen5 x4 M.2 includes an EZ release latch for tool-free swaps, while the primary PCIe slot features MSI’s EZ PCIe release to simplify GPU removal. A DEBUG LED is visible through a tasteful accent cut-out for quick diagnostics.
Rear IO is stacked and ready for modern workflows: four USB 2.0, two USB 10 Gbps Type-A, two USB 40 Gbps Type-C, one USB 10 Gbps Type-C, HDMI-out, dual antenna ports for Wi-Fi 7 and Bluetooth 5.4, Clear CMOS and Flash BIOS buttons, a 5 GbE LAN port, and three audio jacks.
What sets the Tomahawk MAX PZ apart is MSI’s backside connector design. The 24-pin ATX, dual 8-pin CPU power, supplemental 8-pin for PCIe slots, SATA ports, multiple fan and RGB headers, and additional USB headers are all routed to the back of the motherboard. The result is an ultra-clean front-facing build with dramatically simplified cable management—perfect for showpiece white PCs.
Why these boards matter for AM5 builders
– Forward-looking connectivity: PCIe Gen5 for GPUs and storage, Wi-Fi 7, 5 GbE LAN, and 40 Gbps USB-C ports keep these boards current for years.
– Smarter builds: The ITX model’s modular PCBs and the Tomahawk’s backside connectors reduce clutter and improve airflow.
– Ryzen-focused tuning: Expanded BIOS tools give enthusiasts more control over memory, voltages, and performance profiles.
– Style without compromise: The cohesive white finish on both boards appeals to modern aesthetic builds without sacrificing capability.
MSI plans to roll out these AM5 motherboards, along with additional options, in the coming months. Whether you’re building a compact powerhouse or a pristine full-tower showcase, the MPG X870I Edge Ti EVO WiFi and MAG X870E Tomahawk MAX PZ look ready to deliver on both performance and presentation for the latest AMD Ryzen platforms.
