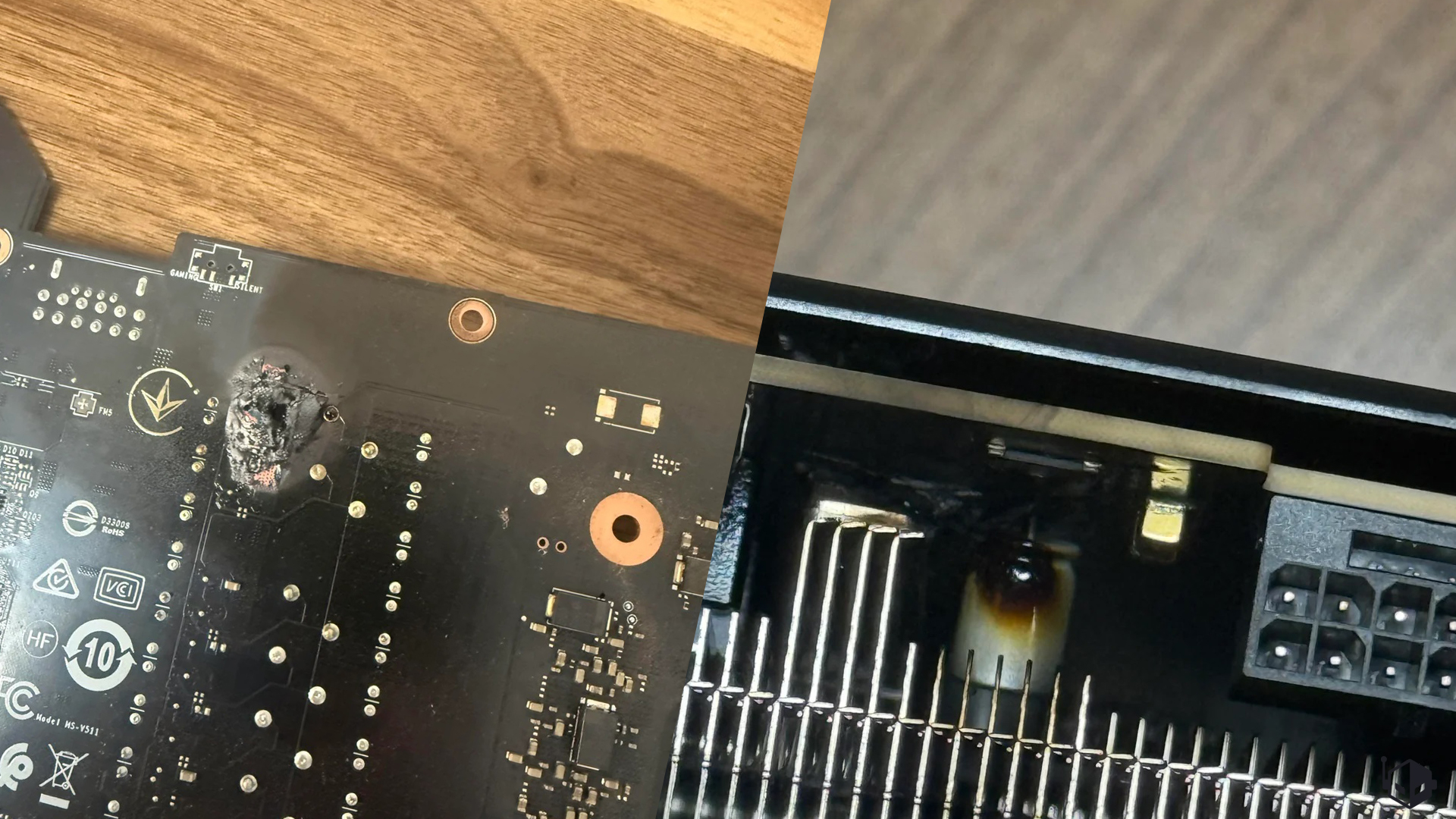

A graphics card failure so severe it scorched straight through the board is making the rounds online, and it’s easily one of the most extreme RTX 40-series incidents seen so far. According to a Reddit user who shared photos of the aftermath, an MSI GeForce RTX 4080 Super Ventus 3X OC reportedly suffered a sudden short circuit in the power delivery area, leaving visible burn damage near the 16-pin power connector and what appears to be an actual hole in the PCB.
The user says the RTX 4080 Super was installed on a test bench when the problem occurred. Almost immediately after power-up, the card allegedly began shooting flames. While details about the exact test bench configuration weren’t provided, the images posted of the graphics card itself show heavy charring around the VRM section close to the power input area. At a glance, the damage could resemble a blown capacitor, but the extent of the burn suggests something far more violent than a typical capacitor “pop.”
Based on the location and severity of the damage, the failure may have involved a component in the VRM (voltage regulator module), such as a capacitor or a MOSFET. One possibility is that a capacitor failed first, destabilizing voltage regulation and triggering a cascade that overheated the MOSFETs. Another possibility is that a MOSFET failed directly, allowing excessive current to flow and rapidly generating enough heat to ignite nearby materials and burn through the PCB. Whatever the root cause, a consumer GPU producing open flames under normal operation is not something anyone should ever expect.
Now comes the part many owners worry about most: warranty coverage. The Redditor said the card had not been disassembled before the incident and was only opened afterward to document the damage. However, opening a graphics card can complicate an RMA process, because it may be harder to prove that the damage wasn’t caused during disassembly. The user indicated they’re uncertain whether MSI will honor the warranty claim.
For RTX 4080 Super owners and PC builders in general, this serves as a reminder to take power-related issues seriously. If a GPU shows any sign of electrical smell, smoke, crackling, or unusual heat near the power connector or VRM area, shut the system down immediately and disconnect power. While catastrophic failures like this are rare, the power delivery components on modern high-end GPUs handle significant loads, and when something goes wrong, it can go wrong fast.
