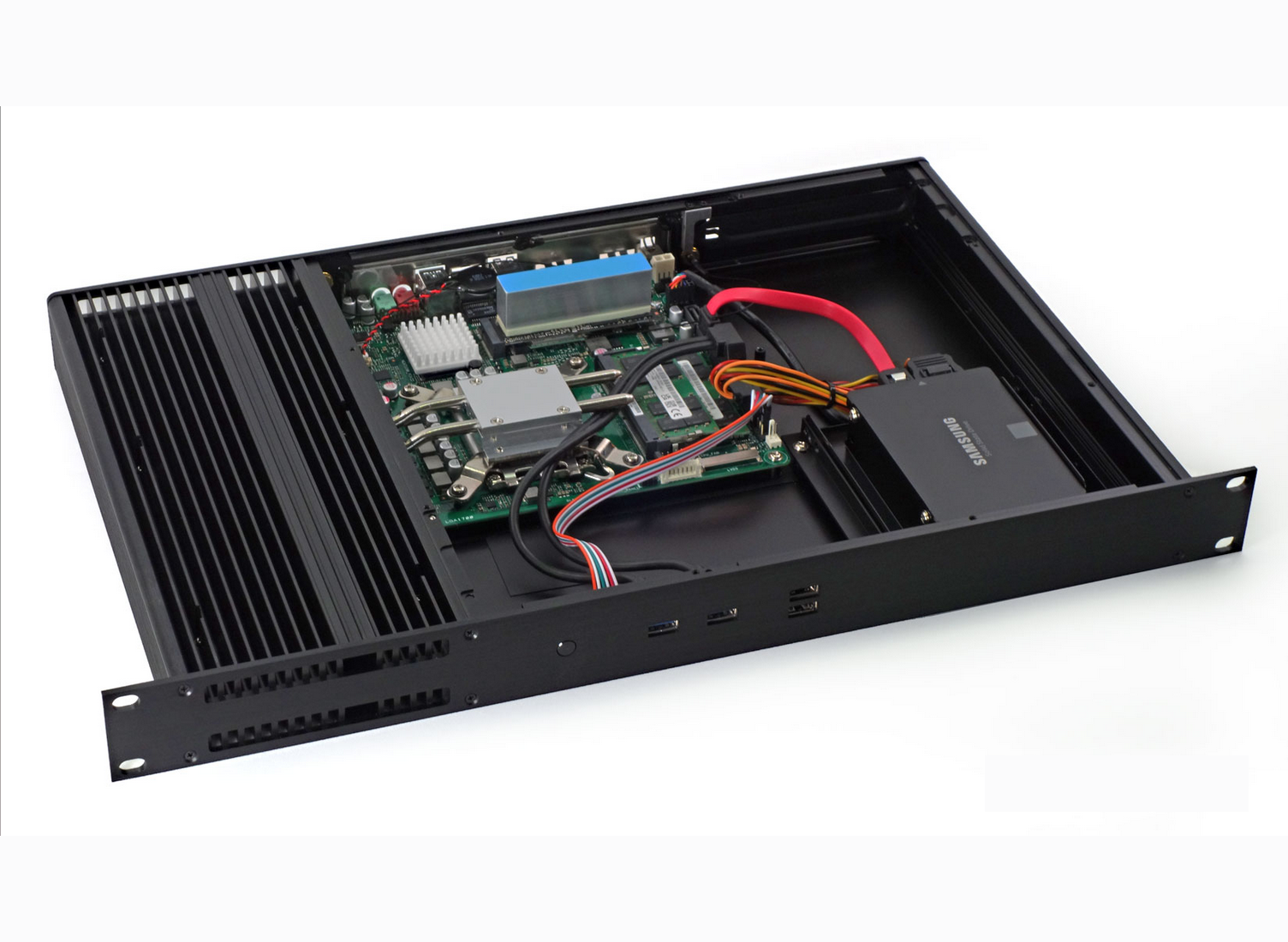

For those in search of a powerful, yet silent computing solution, a mini PC equipped with the Intel i7-14700T is now available in a rackmount format, offering a fusion of compact design and impressive performance. The provider, Atlast Solutions, has designed a custom aluminum cooling block and passive cooling fins to ensure that this fanless machine operates smoothly even when the CPU boosts to 5.2 GHz.
The i7-14700T processor from Intel is part of the T-series, which is known for its power efficiency. These processors maintain lower base power requirements with a TDP (Thermal Design Power) of 35 watts, making them ideal for systems where noise reduction and energy conservation are a priority. To successfully incorporate such a processor into a mini PC set-up without the need for a fan, a robust cooling system must be in place, especially as the TDP can rise to 106 watts when performance kicks into higher gear.
However, these T-series CPUs are too significant in size to fit into a very compact 4×4 mini PC format. A large passive cooler, such as Noctua’s NH-P1, would be somewhat contradictory as it would defeat the purpose of a mini PC due to the required space. In response to this, Atlast Solutions offers an alternative with the Akasa Galileo TU3 Plus rackmount chassis. This solution maintains a slender profile while providing ample space for the cooling system needed to manage the CPU’s temperature.
The result is a mini PC that is larger than the typical models, with dimensions of 482.6 x 278 x 43.6mm, but it remains significantly less bulky compared to a traditional desktop setup. The passive cooling solution forms about 20% of the total case size, offering efficient temperature management without the need for fans.
Though powerful, the system does have its limitations. Accompanied by an Asus Pro H610T mini-ITX motherboard, memory support is capped at 64 GB of DDR4-3200 RAM, and the available ports reflect older standards, including USB 3.2 and HDMI 2.1. Nonetheless, the motherboard does provide modern touches with an M.2 PCIe 4.0 slot for snappy SSD storage capabilities and the option for Wi-Fi 7 support at an additional cost.
Atlast Solutions’ starting configuration includes 16 GB of RAM, a 500 GB SSD, and a Wi-Fi 6 card, all for a price of €1,172.3. Additional upgrades, such as opting for Wi-Fi 7 connectivity or adding more storage with SATA3 SSDs, are also available for those seeking a little extra from their system. While no operating system is included by default, clients can choose to have Ubuntu or purchase a license for Windows 11 separately.
This effectively designed, fanless mini PC rackmount provides a compelling choice for users looking for a quiet yet potent computing experience. Its unique build and customizable options cater well to professionals in various sectors, from content creation to data-intensive computations, where space-savings, energy efficiency, and silent operation are highly valued.
