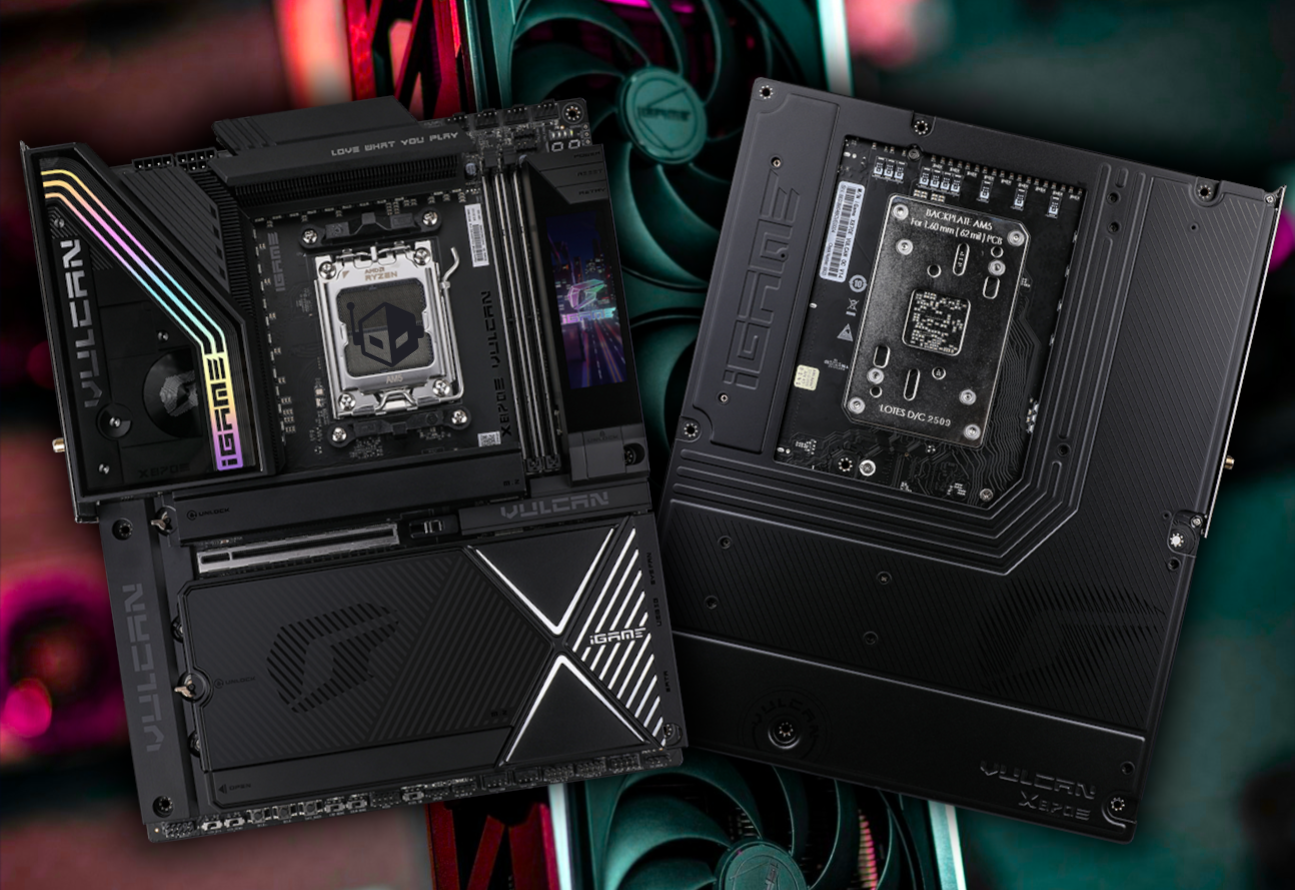

Colorful is stepping up its AM5 game with the launch of the iGame X870E Vulcan OC V14, a flagship motherboard aimed squarely at overclockers, enthusiasts, and high-end gaming PC builders. Positioned in the company’s Vulcan lineup—known for bold styling and feature-heavy hardware—this board is built to push Ryzen systems hard, with a major headline spec: support for extremely fast DDR5 memory, reaching up to DDR5-10000.
Built around the AM5 socket, the iGame X870E Vulcan OC V14 is designed to work with current Ryzen processors and leave room for upcoming chips as well. Power delivery is clearly a major focus here. The motherboard uses dual 8-pin CPU power connectors and an 18+2+2 phase VRM design rated at 110A, a configuration intended to deliver stable power under heavy loads and during serious overclocking sessions.
One of the most notable design choices is the two-DIMM layout. Instead of four memory slots, Colorful opted for a dual-DIMM (1DPC) configuration to improve signal integrity, which typically helps when chasing higher DDR5 frequencies. Memory support depends on the CPU generation you drop in: the board is rated for 10,000 MT/s+ with Ryzen 8000G processors, 8600 MT/s+ with Ryzen 9000, and 8000 MT/s+ with Ryzen 7000. Both XMP and EXPO profiles are supported, giving users flexibility whether they’re using Intel-optimized kits or AMD-tuned memory.
For expansion and storage, the board targets modern, bandwidth-hungry builds. You get one PCIe 5.0 x16 slot for the GPU, plus an additional full-length slot wired at PCIe 4.0 x4. Storage is equally ambitious, with five M.2 slots in total: three are PCIe Gen5 x4 and two are PCIe Gen4 x4. There is a lane-sharing arrangement to note, though—when two of the Gen5 M.2 slots are populated, the PCIe 5.0 x16 graphics slot drops to x8 mode. That’s a common compromise on current platforms when balancing top-tier GPU bandwidth with multiple PCIe 5.0 SSDs.
Colorful also leans into builder-friendly touches. The primary PCIe slot includes an easy-release mechanism, and the M.2 heatsink covers are designed with quick-release functionality as well. The second PCIe slot is placed under a plastic shroud, keeping the look clean while still offering expansion options.
On the visual side, the iGame X870E Vulcan OC V14 goes for a premium, showcase-ready design. Multiple RGB lighting zones are integrated across areas like the rear I/O cover and chipset heatsink. A standout feature is the onboard LCD module positioned near the DIMM slots, paired with handy onboard buttons such as Power and Reset. You also get a debug display for troubleshooting, along with a wide selection of internal headers designed for cooling, lighting, and front-panel connectivity.
Internal connectivity includes:
2 USB 2.0 headers (supporting up to 4 USB 2.0 Type-A ports)
1 USB 3.2 Gen 1 header (supporting up to 2 USB 3.2 Gen 1 5Gbps Type-A ports)
1 USB 3.2 Gen 2×2 Type-C header (supporting 20Gbps Type-C)
2 CPU fan headers
4 system fan headers
2 water pump headers
4 5V 3-pin ARGB headers
1 front audio header
1 front panel header
1 speaker header
1 RSVD header
The rear I/O is loaded for a high-end AM5 build, including fast USB options and next-gen wireless support:
2 USB 2.0 ports
4 USB 3.2 Gen 1 5Gbps Type-A ports
4 USB 3.2 Gen 2 10Gbps Type-A ports
2 USB4 40Gbps Type-C ports (with video output up to 4K at 60Hz)
1 PS/2 port
1 5GbE LAN port
2 Wi-Fi 7 antenna connectors
2 audio jacks (output and microphone)
1 optical audio output
1 BIOS update button
1 TURBO overclocking button
1 CMOS clear button
Other notable specs include a 256MB BIOS chip, standard ATX sizing for broad case compatibility, and modern networking with Wi-Fi 7 plus Bluetooth 5.4 alongside 5GbE wired Ethernet. Audio is handled by the Realtek ALC1220 codec paired with an ES2919Q amplifier, supporting 7.1-channel output—another sign this board is meant to sit in the premium enthusiast tier.
Colorful hasn’t shared pricing or a firm release schedule yet. Availability is expected to focus primarily on APAC markets, and given the feature set—DDR5-10000 capability, 22-stage power design (18+2+2), USB4, Wi-Fi 7, and multiple Gen5 M.2 slots—this motherboard is clearly intended for builders who want a top-end AM5 platform aimed at performance tuning and next-generation components.
