Get ready to meet Intel’s latest and most advanced powerhouse, the Core Ultra 9 285K, the pinnacle of the Arrow Lake desktop CPU lineup. For the first time, detailed die shots have emerged, providing an exciting glimpse into this game-changing processor.

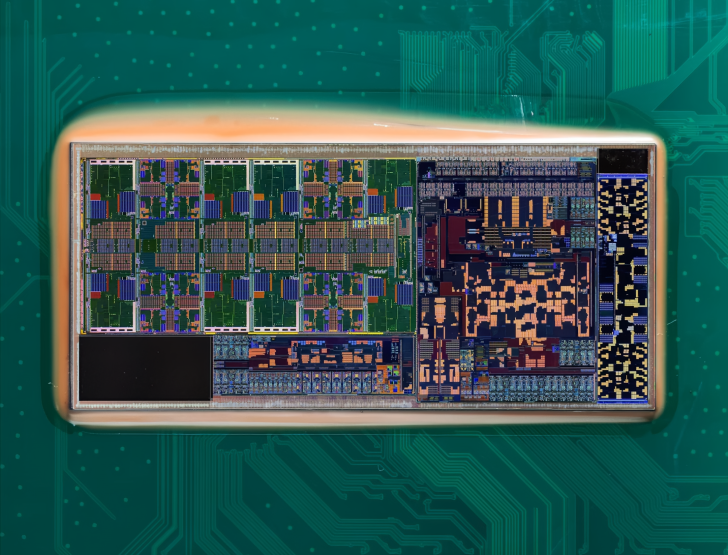

Intel’s foray into tiled CPU architecture for desktop PCs marks a significant leap, with the Core Ultra 9 285K embodying this cutting-edge technology. Thanks to ASUS China’s manager, Tony Yu, these enlightening die shots give us a tour of the CPU’s fine craftsmanship, highlighting its various tiles and the innovative Compute Tile featuring the new Lion Cove P and Skymont E cores.
The Arrow Lake CPUs are ingeniously assembled in a tiled structure, comprising six vital components:
– Compute Tile (featuring TSMC N3B technology)
– Graphics Tile (crafted using TSMC N5P)
– SOC Tile (deployed with TSMC N6)
– I/O Tile (also devised with TSMC N6)
– Two Filer Tiles (to maintain structural integrity)
– Base Tile (Intel 1227.1)
A closer look at the Compute Tile reveals up to 8 Lion Cove P-Cores and 16 Skymont E-Cores blended seamlessly, unlike the divided configurations seen in the Raptor Lake and Alder Lake predecessors. This integration not only enhances the Ring Bus interconnect fabric but also improves thermal efficiency.
Among the most exciting enhancements, the Intel Arrow Lake Compute Tile boasts:
– Utilization of TSMC N3B technology
– Up to 8 Lion Cove P-Cores
– Up to 16 Skymont E-Cores
– Advanced Ring Bus Interconnect
The Arrow Lake SoC Tile introduces:
– TSMC N6 technology
– DDR5 Memory Controller with native speeds up to 5600 MT/s
– Support for UDIMM/CUDIMM/CAMMII
– A powerful 13 TOPS NPU3
– Media Engine supporting H.264/H.265/AV1 formats
– PCIe 5.0 x16 capability for dGPU
The I/O Tile offers:
– TSMC N6 technology
– Highly versatile PCIe 5.0 x4 for SSDs
– Next-gen PCIe 4.0 x4 for SSDs
Intel’s Arrow Lake CPUs cleverly package various tiles together, creating an appearance of a monolithic die, distinct from AMD’s more spread-out chiplet layout.
In addition to the Compute Tile, the Core Ultra 200S “Arrow Lake” CPUs feature a Graphics Tile loaded with 4 Xe-LPG “Alchemist” cores. They also integrate a comprehensive SoC Tile containing the PCIe 5.0 x16 controller, an NPU, and advanced Media/Video Engines.
Anticipation builds for the Core Ultra 200S “Arrow Lake” CPUs, including the Ultra 9 285K, as the official launch date, October 24th, approaches. Soon, these innovative chips will be in action, showcasing their powerhouse capabilities.
Prepare yourself for a thrilling glimpse into the future of computing technology.
