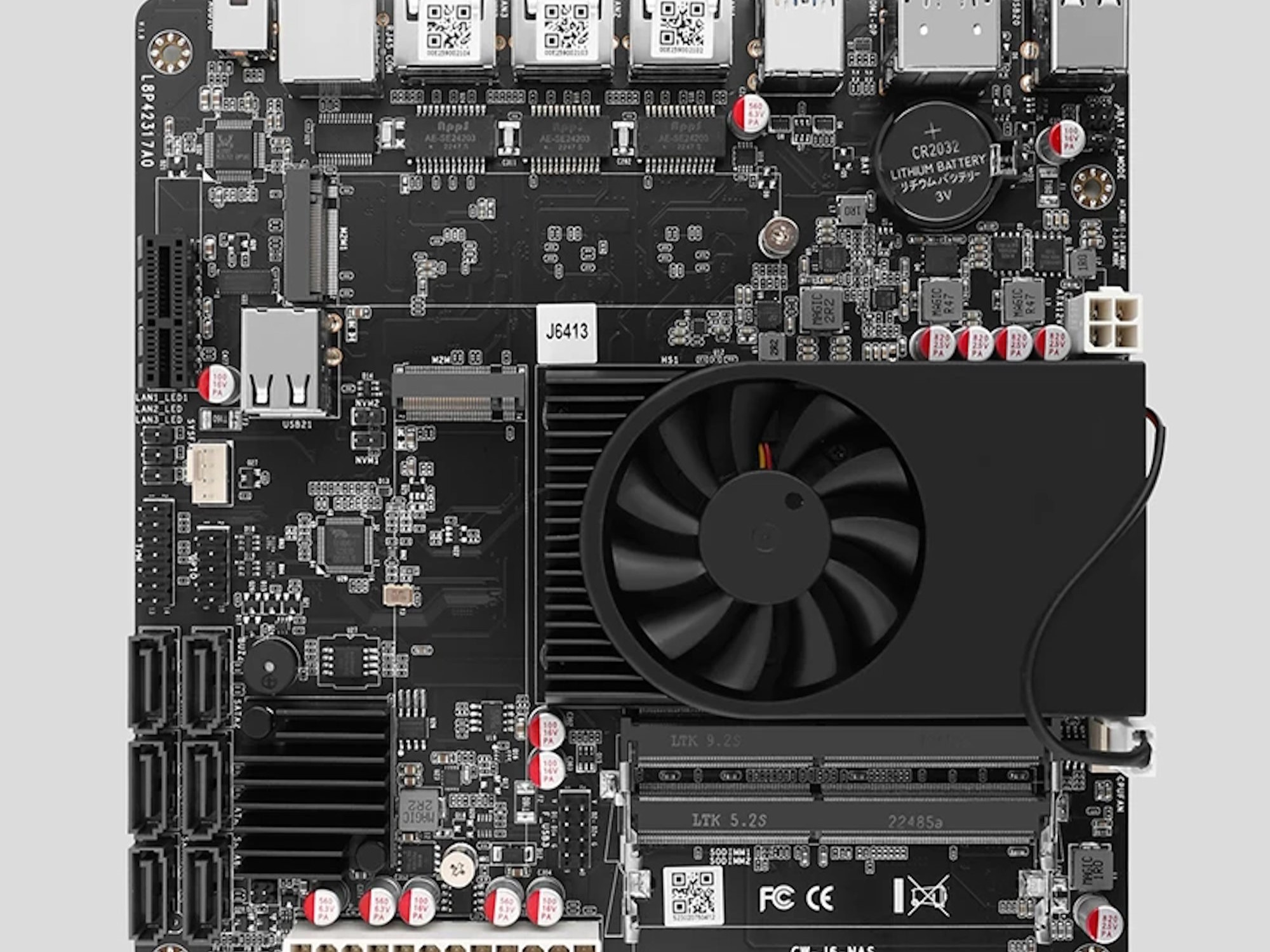

For tech enthusiasts looking for a custom solution for their data storage needs, building a network attached storage (NAS) system can be a rewarding project. The new mainboard from CWWK, featuring an Intel Celeron J6413 processor, is emerging as a strong foundation for DIY NAS setups.
While the Intel Celeron J6413 may not be the most powerful chip on the market, its performance is more than adequate for a NAS system, providing users with a reliable platform for storing and playing back media content. The mainboard features HDMI 2.0 and DisplayPort 1.4a interfaces, capable of delivering 4K video at 60 Hz, offering both quality and versatility.
The mainboard supports up to 32GB of DDR4 RAM, but it’s worth noting that it specifically requires ECC memory, which usually comes with a higher degree of reliability – an important factor when it comes to storing sensitive or crucial data. For storage, the board offers ample connectivity with six SATA ports, enabling users to connect a mix of both 2.5-inch and 3.5-inch hard drives or SSDs. Additionally, there are slots for two M.2 2280 SSDs, which can be utilized for faster NVMe flash memory access.
When considering networking capabilities, which are vital for NAS systems, this mainboard doesn’t disappoint. It comes with three Ethernet ports, each supporting speeds of up to 2.5 Gbit/s, facilitating quick and efficient data transfer across the network.
Expansion potential is also a key feature, with the board including two USB 2.0 and two USB 3.0 ports along with headers for additional USB 2.0 connections. Though it has just one PCIe lane, this can be used for installing expansion cards such as an extra network card if more connectivity is required.
The design of the mainboard is compact, adhering to Mini-ITX specifications and measuring 17 x 17 cm, which should fit comfortably in most cases designed for NAS builds. It’s also equipped to handle cooling with several fan installation points, and the processor comes with its own cooler and fan.
Available on platforms like AliExpress for around $175, the cost for this CWWK mainboard is comparable to some entry-level, pre-built NAS units from well-known manufacturers, making it an intriguing option for those who prefer a customized setup.
For someone inclined to take on a NAS project, this mainboard presents a strong starting point, combining the flexibility of custom-built systems with the reliability features required for a dependable NAS. A mainboard like this offers a balance between performance and price, making it particularly appealing to those looking to store large amounts of data, stream media, or maintain an efficient home network.
In summary, whether you’re a tech hobbyist, a digital hoarder, or a home office worker in need of a robust storage solution, building a NAS with a versatile mainboard such as the one from CWWK could enhance your data management strategy. With the guidance provided here, you’re one step closer to constructing a personalized NAS system tailored to your specific needs.
