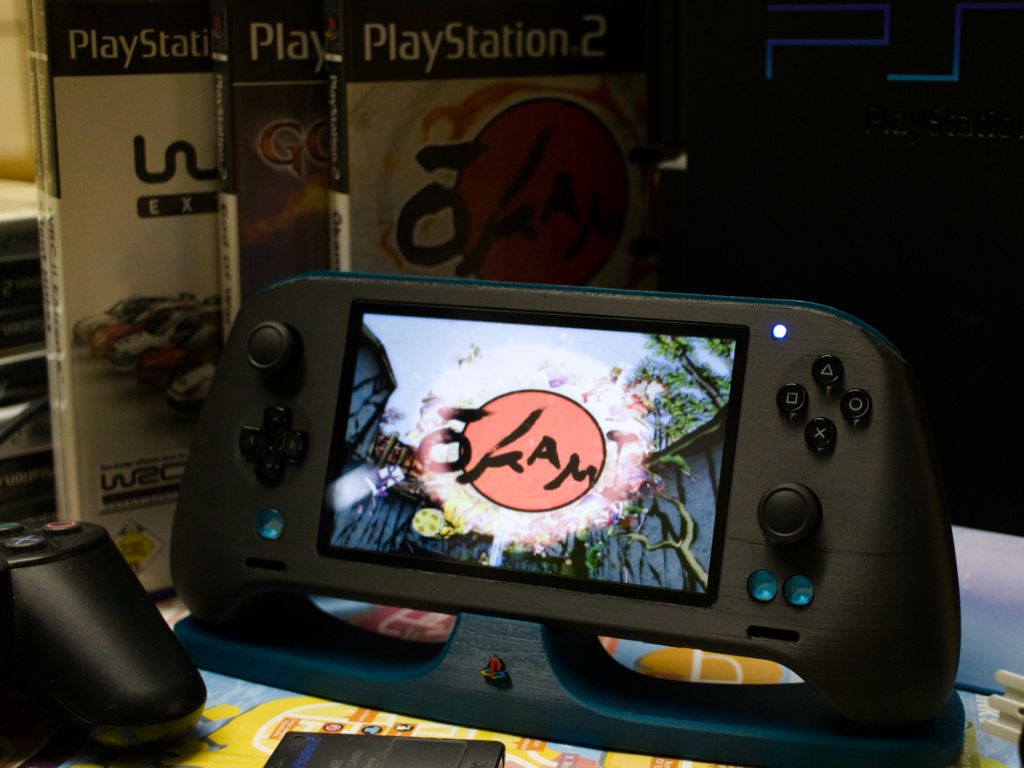

A solo hardware modder known as Tschicki has built one of the most impressive DIY portable PlayStation 2 handhelds seen in the retro gaming scene. Instead of simply placing a PS2 motherboard inside a custom shell, this project takes things much further with a reverse-engineered mainboard, custom electronics, and a design that looks inspired by modern Windows gaming handhelds.
The portable PS2 project began in early 2022 and was shared publicly last year, but it has recently gained fresh attention among console modding fans. Its standout feature is the custom motherboard. Unlike most PlayStation 2 portable builds, this device does not rely on a trimmed-down original Sony PS2 board. Instead, it uses a reverse-engineered mainboard created specifically for the handheld.
According to Tschicki, the portable contains what is believed to be the world’s first custom reverse-engineered PlayStation 2 mainboard not made by Sony. Only six integrated circuits are reused from original PS2 hardware, taken from SCPH-7900x or SCPH-9000x motherboards. That makes this build far more advanced than a typical console mod.
Most of the handheld’s internal components are new. A Trion T20 FPGA manages the digital video output and includes a custom motion-adaptive deinterlacer, line doubler, and bilinear scaler. In simple terms, the original PS2 video signal is cleaned up and converted into a sharper image for the handheld’s LCD screen. This helps games look much better than they would on a basic portable display setup.
Power management is handled by an RP2040 microcontroller. This chip also takes care of battery charging and emulates a DualShock 2 controller, including classic rumble support. That means the system is designed to feel like a real PlayStation 2 experience in handheld form rather than just a compact emulation device.
Battery life is another strong point. The handheld uses two 21700 batteries and can run for around 4.5 hours on a charge. For a portable PS2 built with real hardware, that is a respectable result. It also supports USB-C charging and uses an undervolting setup to help reduce heat and improve stability during gameplay.
The controls also show careful attention to detail. The face buttons are inspired by the PS Vita, while the analog sticks use Hall-effect technology. These sticks are more resistant to drift than traditional analog sticks, which makes them a smart choice for a high-end custom handheld.
Visually, the device has a modern gaming handheld shape, with ergonomics similar to current portable PC gaming systems. The result is a PlayStation 2 handheld that looks surprisingly polished while still being a deeply technical DIY project.
However, this is not a beginner-friendly build. Tschicki has made the project files available, including the PCB designs, FPGA code, 3D models, and firmware, but assembling one requires serious skill. Anyone attempting it would need experience with fine-pitch BGA soldering, chip programming, and hardware troubleshooting.
Tschicki has also warned that even experienced builders should think twice before attempting the project, saying they would highly recommend not building one, even for those who understand the risks.
Even so, the project is a remarkable achievement in the world of retro gaming hardware. This is not just another handheld running a PlayStation 2 emulator. It is a custom-built portable PS2 powered by real reverse-engineered hardware, designed from the ground up by one dedicated modder. For fans of console modding, DIY electronics, and classic PlayStation gaming, it stands as one of the most fascinating handheld builds to date.
