In the realm of gaming consoles, the Valve Steam Box prototype from 2013 remains a unique innovation. Though it’s a product of yesteryears, the Steam Box still manages to impress with its performance on various classic games. Among its interesting features is the mini PC’s modular design, which was intended to facilitate easy hardware upgrades.
The modular gaming PC known as the Xi3, currently comparable to models like the GEEKOM A7 (retailing at $699 on Amazon), recently came back into the limelight thanks to an examination by a YouTuber of its capabilities and design. The highlight of the exploration was the device’s exceptional approach to video output connectivity.

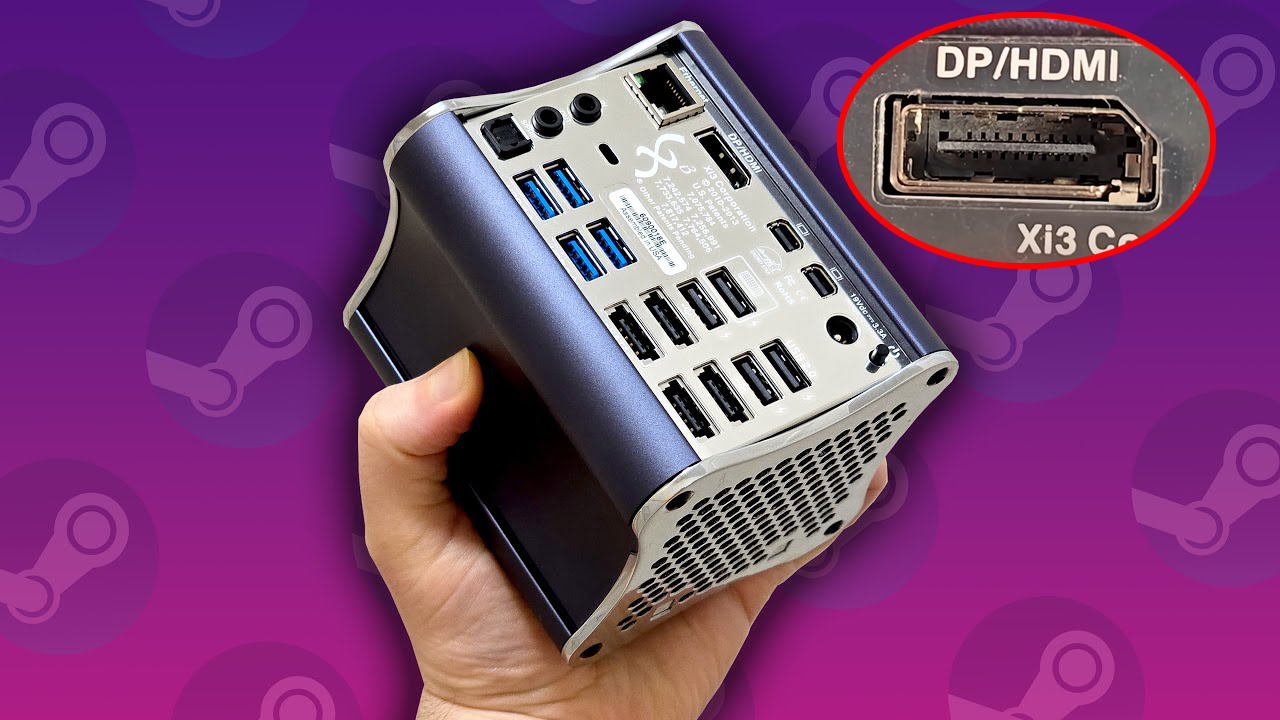

As the story goes, an ex-employee provided insights into the intriguing hybrid DisplayPort/HDMI port featured on the console. Initially, it was assumed that the port allowed the use of passive converters by being a pin-compatible DisplayPort capable of transmitting HDMI signals. It turns out, this port is ingeniously designed to accommodate both HDMI and DP connectors simultaneously.
Even more fascinating, the prototype’s BIOS offers an auto-detection feature concerning the type of cable connected. Users can additionally configure the BIOS to restrict the port function to solely DP or HDMI output. This modularity defies conventional design, as standard DisplayPort ports do not support direct HDMI plug-in due to differences in pin configuration and licensing policies.
Unlike the typical U-shaped pin setup of standard DP ports, this hybrid port implements a streamlined pin layout devoid of key guides, thus allowing for the dual compatibility. The design ensures a secure fit for HDMI plugs, simplifying the connection process for the user and eliminating the concern of improper cable usage.
While this prototype displayed an innovative approach to video connectivity, modern devices typically do not feature this hybrid port, potentially due to the stringent licensing terms associated with HDMI technology. For those interested in exploring this piece of legacy hardware further, images and video content are available to illustrate the distinctive port characteristics in greater detail.
