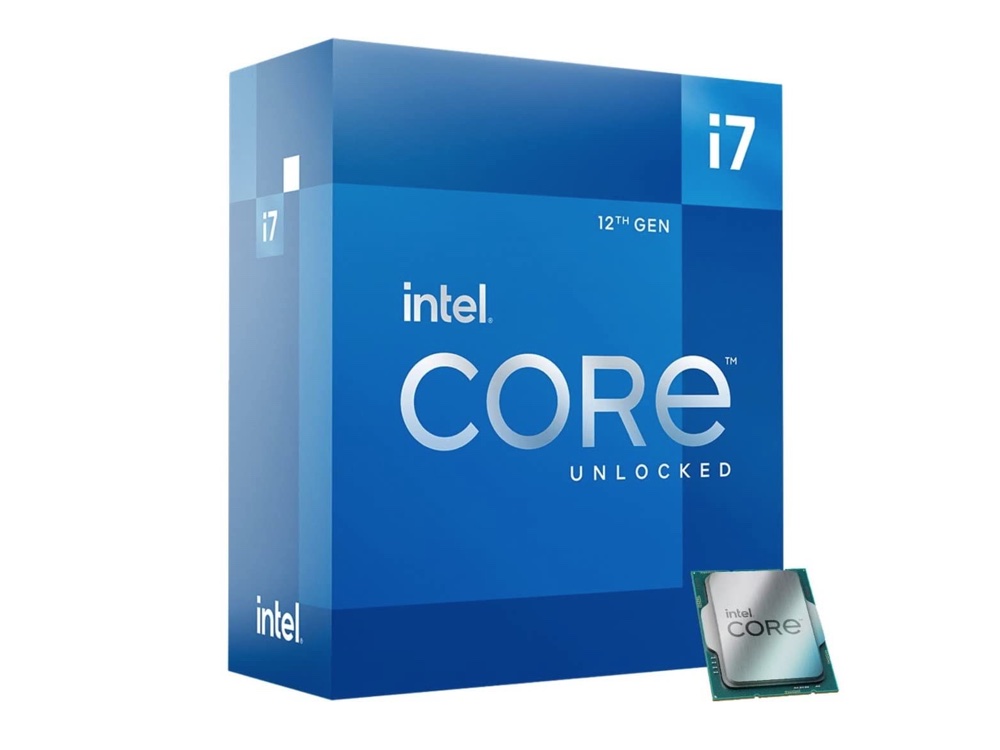

The Intel Core i7-12700F is a robust desktop processor grounded in the cutting-edge Alder Lake architecture, launched in November 2021. Designed for speed and efficiency, the CPU boasts a base frequency of 3.3 GHz and a turbo peak of 4.9 GHz. Adopting a hybrid design, it features 8 Performance-cores (P-cores) and 4 Efficient-cores (E-cores), a configuration that enhances multitasking and power management.
Constructed using the sophisticated 10 nm manufacturing process, the i7-12700F marks a significant advancement from the previous generation Rocket Lake processors. While the chip does not allow overclocking due to a locked multiplier, end-users can benefit from enhanced out-of-the-box performance without the need to tinker with the settings.
Performance Metrics
When it comes to performance, the i7-12700F demonstrates appreciable gains over its predecessor, the i7-11700, notably due to the improved Instructions Per Cycle (IPC) and the contribution of its E-cores. The overall system throughput is raised, positively impacting various types of applications, from everyday tasks to more demanding processes.
The performance cores can reach up to 4.9 GHz thanks to Intel Turbo Boost 3.0 technology when conditions are ideal, while the E-cores can also turbo up to 3.6 GHz.
Graphics Capabilities
The processor incorporates the Intel UHD Graphics 770 integrated GPU. Although it’s a basic solution, it’s adequately equipped for general productivity tasks and light graphical work, ensuring that users without a discrete graphics card can still benefit from visual display capabilities.
Power Consumption Insights
With a Thermal Design Power (TDP) of 65 watts, the i7-12700F is tuned for energy efficiency, but can draw up to 180 watts under turbo conditions to deliver enhanced performance when needed. To maintain peak performance without the thermal or power restrictions that can be adjusted in the BIOS, an efficient and robust cooling solution is recommended.
Technical Specifications:
– Clock Rate: 3300 – 4900 MHz
– Level 1 Cache: 1 MB
– Level 2 Cache: 12 MB
– Level 3 Cache: 25 MB
– Number of Cores / Threads: 12 / 20
– Power Consumption (TDP): 65 Watt
– Manufacturing Technology: 10 nm
– Die Size: 215 mm²
– Max. Temperature: 100 °C
– Socket: LGA 1700
– 64 Bit support
– Architecture: x86
– Launch Price: $349 USD
Benchmarking Analysis
Benchmark tests reveal the Core i7-12700F’s prowess with scores highlighting superior single-threaded and multi-threaded performance benchmarks across various platforms such as Cinebench R23, Geekbench, and 3DMark. Users can expect significant performance improvements, particularly in multitasking and demanding computational tasks.
Power Consumption – When it comes to power efficiency, the i7-12700F shows strength in both high-performance scenarios and idle conditions, with measurements reflecting a balance between power and output, underlining the processor’s advanced power management features.
In Summary
The Intel Core i7-12700F is an efficient, high-performance processor suitable for users requiring a blend of speed and multitasking capabilities without the need for manual overclocking. Its hybrid architecture provides a substantial uplift over previous generations, and though constrained in overclocking potential, it serves as a compelling option for both enthusiasts and mainstream users building a new PC.
Whether for gaming, content creation, or daily productivity, the i7-12700F presents a compelling option that balances cost, performance, and energy efficiency. The processor represents a milestone evolution in Alder Lake-S series CPUs and is poised to deliver excellent computing experiences across diverse scenarios.
