The PC cooler market is more competitive than ever, with familiar names fighting for space in new builds and upgrades. What’s making things especially interesting lately is seeing established PC hardware companies expand into cooling with serious, enthusiast-grade designs. ASRock is doing exactly that, and its latest all-in-one liquid cooler shows it’s not just testing the waters.
The ASRock Steel Legend 360 LCD is a mainstream-focused 360mm AIO liquid cooler priced around $159, built for gamers and performance PC builders who want strong thermals, a modern LCD display on the pump, and standout ARGB lighting without jumping straight into ultra-premium pricing. Available in both black and white (with 360mm and 240mm options), the Steel Legend line aims to balance looks, features, and high-TDP cooling in a way that fits today’s popular PC build trends—especially white-themed builds.
A big selling point here is the feature set. ASRock rates the Steel Legend 360 LCD for up to 350W TDP support, which puts it firmly in “high-end CPU ready” territory. It also includes a 3.4-inch full-coverage IPS LCD (480×480 resolution, 60Hz refresh rate) mounted on a magnetic pump-top cover. That display can be used for custom images, GIFs, and real-time hardware monitoring, giving it the kind of personalization many builders specifically look for in an LCD AIO cooler.
Compatibility is also current-gen friendly. The Steel Legend 360 LCD supports both Intel and AMD platforms, including Intel LGA 1700/1851 and AMD AM4/AM5 sockets, making it a realistic option for new builds as well as upgrades.
Build quality is clearly a focus. The 360mm radiator uses a thicker 27mm design for improved heat dissipation versus many standard AIO radiators, and the full unit measures 397 x 120 x 27mm. The radiator is paired with three 120mm FDB fans that can spin up to 2500 RPM, pushing up to 76.7 CFM airflow with up to 4.16 mmH2O static pressure. Noise is rated up to 38.3 dBA at maximum speed, and each fan uses a 4-pin PWM connector for speed control.
One of the cooler’s signature visual features is its “halo” style lighting. The three fans come integrated into a single-frame assembly and deliver a 360-degree HALO ARGB effect that looks especially clean in a windowed case. Lighting control is handled through ASRock’s Polychrome Sync, which allows customization to match the rest of a system’s RGB ecosystem.
The pump and cold plate design is where ASRock tries to separate the Steel Legend 360 LCD from typical mainstream AIO coolers. The pump uses a next-gen motor design described as a 3-phase, 6-slot, 4-pole setup designed to increase flow and durability. Internally, the block uses a dual-side inlet cooling path to shorten coolant flow distance and maintain more balanced distribution across a high-density micro-fin array. The CPU contacts a large copper baseplate, providing ample coverage for modern processors.

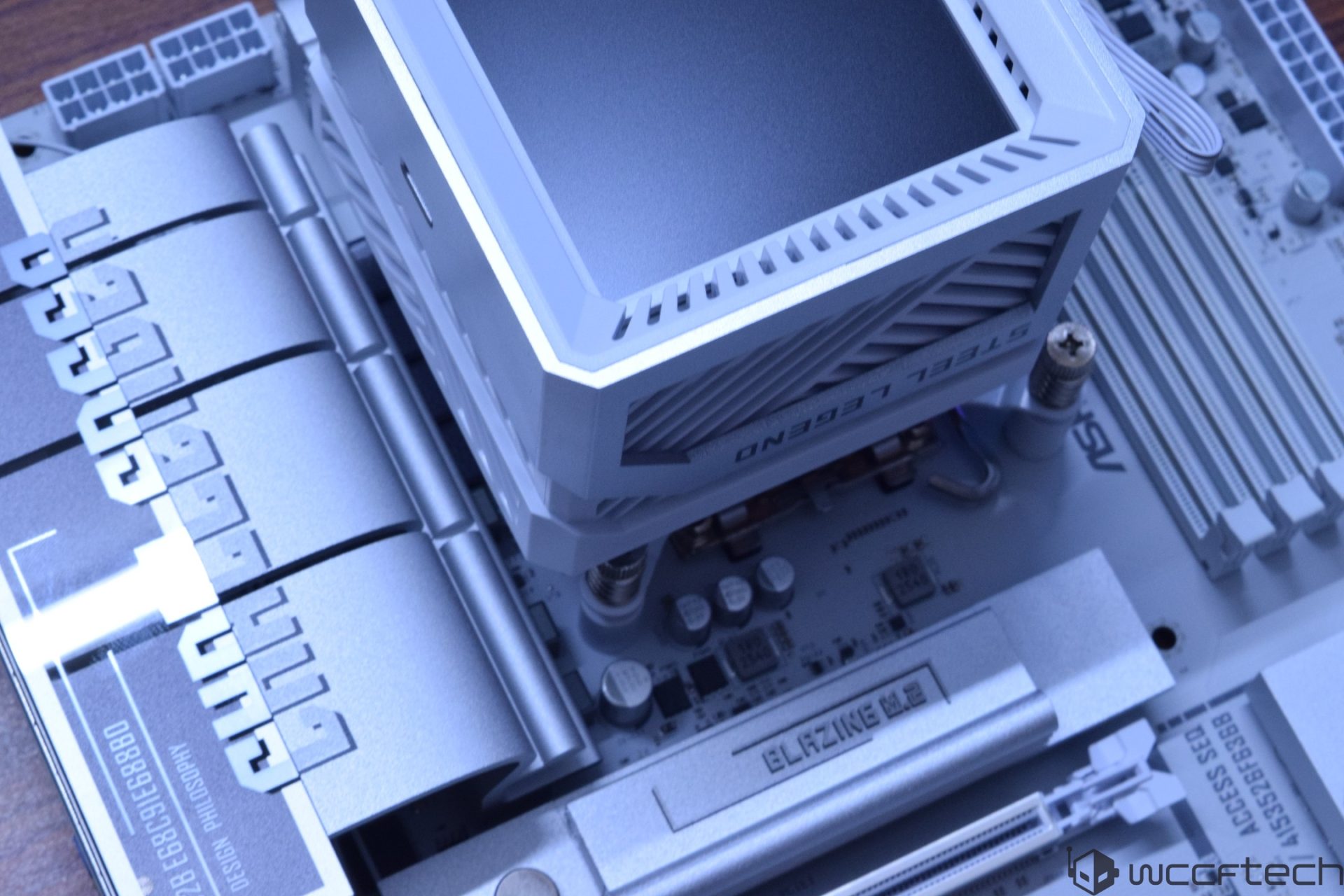

Then there’s the extra twist: an integrated VRM fan. The water block is taller than many standard AIO pump housings because it includes a built-in 70mm fan that can spin up to 3000 RPM using a 4-pin PWM connection. ASRock positions this as a practical feature for better motherboard cooling, claiming up to 25°C lower VRM temperatures. In testing, the VRM fan delivered a meaningful improvement, reducing VRM temperatures by around 10–15°C. That added airflow can also benefit nearby components like M.2 SSDs, depending on motherboard layout and case airflow.
Tubing is also well considered. The Steel Legend 360 LCD uses 450mm tubes with IIR + EPDM materials intended to resist coolant evaporation and deformation over time. The braided sleeving adds a more premium look and improves durability—useful for builders who care as much about clean presentation as performance.
For performance testing, the cooler was evaluated on an AMD Ryzen 9 7950X3D system using an X670E flagship-class motherboard, high-speed DDR5 memory, a 1000W power supply, and a dual-chamber case with top-mounted radiator placement. Overall results were described as strong for the price bracket, delivering good temperatures on a high-end, high-TDP CPU. In other words, this 360mm AIO performs where it needs to: keeping powerful processors under control during heavy workloads.
Noise levels are mostly reasonable, though there are a couple of caveats. Compared with ASRock’s Phantom Gaming sibling, this Steel Legend model can run slightly louder, and at full load both the radiator fans and the small VRM fan can become more noticeable. It’s not presented as a deal-breaker, but it’s worth considering if you prioritize near-silent operation at maximum RPM.
Installation is another win. Packaging and organization are described as excellent, with each component separated and labeled, plus a clear installation guide for Intel and AMD platforms. One downside noted during setup is cable clutter—an issue that’s common with feature-rich AIO coolers that include multiple fans, ARGB, USB connectivity for the LCD, and additional controls.
Long-term support is solid on paper. ASRock backs the AIO module with a 6-year warranty, while the LCD module is covered for 2 years, which should reassure most builders looking to keep a system running for several upgrade cycles.
In daily use, the Steel Legend 360 LCD comes across as a well-rounded LCD AIO liquid cooler for mainstream buyers who still want premium touches. You get strong cooling performance, a sharp customizable display, striking halo ARGB lighting, and the bonus of active VRM airflow—features that collectively make it stand out in a busy 360mm AIO market.
What stands out most
Good cooling performance for the price
Attractive halo ARGB fan design with integrated single-frame fan assembly
3.4-inch LCD with customization and real-time monitoring support
Built-in VRM fan that meaningfully lowers VRM temperatures
Easy installation experience
Strong warranty coverage for the AIO itself
Wide Intel and AMD socket support
Available in both black and white, plus 360mm and 240mm versions
What could be better
Cable management can get messy due to multiple connections
Noise increases at full load
The VRM fan can be noticeable when running at higher speeds
