AI Chip Boom Intensifies as Semiconductor Supply Chains Face Talent Shortages, Packaging Risks, and Equipment Delays
The global race to build faster, more efficient AI infrastructure is putting fresh pressure on the semiconductor industry. Over the past week, several major developments showed how quickly demand is rising across AI chips, advanced packaging, memory, semiconductor equipment, and industrial automation.
From Google’s growing reliance on custom TPUs to longer delivery times for critical chipmaking equipment, the message is clear: AI is no longer just driving demand for GPUs. It is reshaping the entire technology supply chain, from NAND storage and ASIC design to lithography, robotics, and drone regulation.
Sandisk expands engineering hiring in South Korea as AI storage demand grows
Sandisk is making an unusual hiring push in South Korea, targeting engineers with expertise in NAND system architecture, NAND core design, VLSI design, and mask design. The company is also seeking talent with experience in HBM, LPDDR, and GDDR memory technologies.
This marks a notable change for Sandisk’s Korean operations, which have traditionally focused more on sales and marketing than deep engineering. The shift suggests the company is strengthening its technical base as AI workloads create new opportunities in high-performance storage.
AI inference, in particular, is increasing the importance of flash memory and high-bandwidth flash technologies. As AI models move from training into large-scale deployment, fast and efficient storage is becoming a critical part of the data center stack. Sandisk’s hiring move also highlights the fierce competition for memory experts in South Korea, home to some of the world’s most important memory chipmakers.
Google’s TPU economics strengthen the case for custom AI silicon

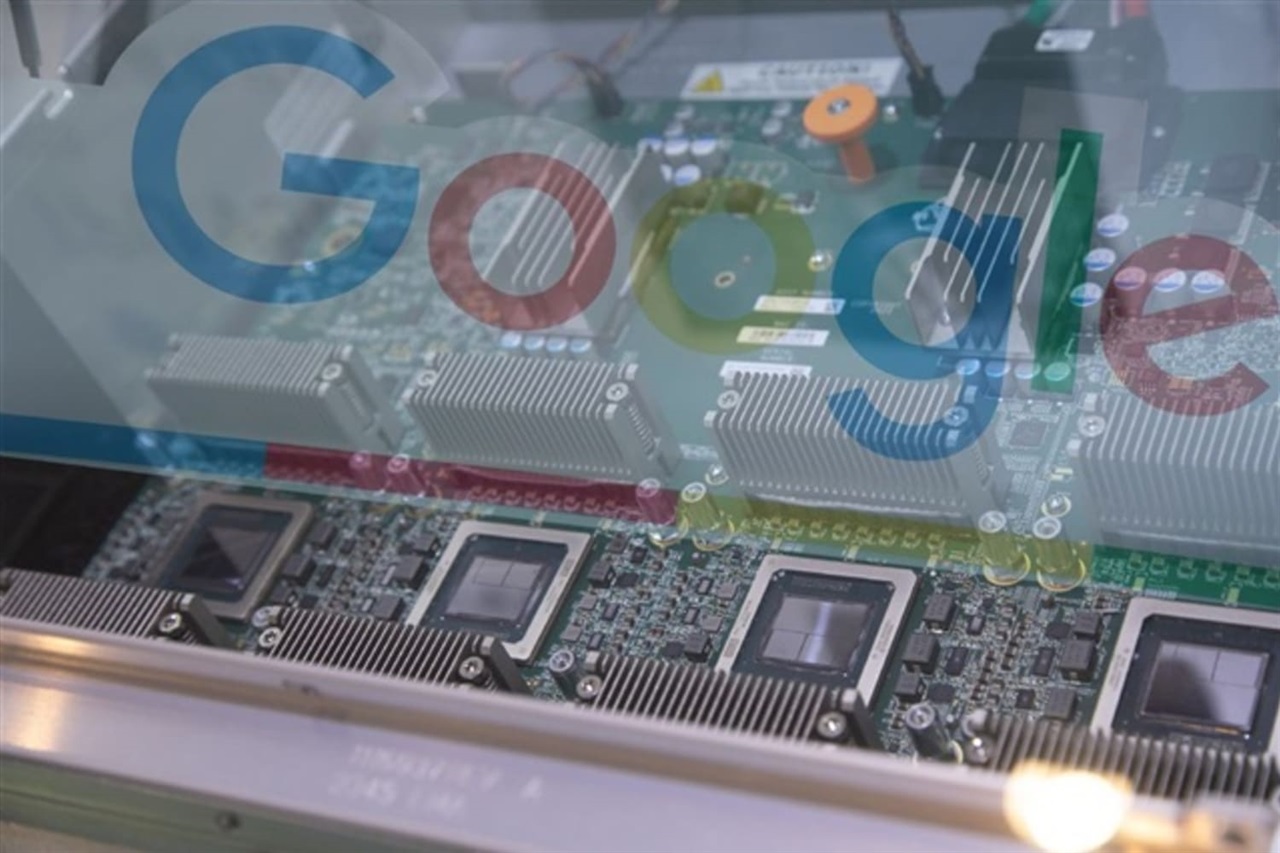

Google’s in-house AI chips are reportedly delivering strong returns. Google Cloud CEO Thomas Kurian said the company’s overall AI server payback period is under two years, while servers using Google’s own silicon, including TPUs, can pay back in under one year.
That kind of return is a powerful argument for continued investment in custom AI chips. It also creates a major opportunity for ASIC partners such as MediaTek and Broadcom, which are tied to the expanding custom silicon ecosystem.
Demand for Google TPU-related projects is said to be rising, with new chip versions under discussion and more industries adopting AI infrastructure. The customer base is moving beyond major AI labs into finance, banking, biopharma, high-performance computing, and enterprise technology.
The broader trend is clear: cloud providers want chips that are optimized for their own workloads. Custom ASICs can improve performance, reduce power consumption, and lower long-term infrastructure costs, making them increasingly attractive as AI deployment scales.
Taiwan focuses on system integration for Physical AI
Discussions in Taiwan this week also turned toward Physical AI, a field that combines artificial intelligence with robotics, sensing, control systems, and real-world industrial applications.
At an industry seminar in Taichung, experts emphasized that Taiwan’s opportunity in Physical AI is not limited to making individual robot parts. Instead, the bigger opportunity lies in integrating hardware, software, sensors, simulation, verification, and control systems into complete solutions that factories can actually deploy.
Speakers from government, academia, consulting, chip technology, and robotics sectors highlighted the need for better test environments, data collection, simulation platforms, and scalable use cases. The goal is to move beyond AI systems that simply monitor production lines and toward systems that can execute physical tasks reliably.
For Taiwan, this could become an important growth area. The island already plays a central role in semiconductors and electronics manufacturing. If it can combine that expertise with robotics and industrial AI integration, it may strengthen its position in next-generation smart manufacturing.
Chip equipment suppliers face lead times of up to 40 months
The semiconductor equipment supply chain is showing signs of strain as chipmakers accelerate fab investment. Some equipment makers are now facing much longer waits for key components, with certain parts reportedly taking up to 40 months to arrive.
In some cases, delivery times that were once around four months have stretched to 10 months. Other locally sourced components are taking roughly 50% longer than before. The pressure is being driven by aggressive capacity expansion from major semiconductor players and strong demand for wafer fab equipment, DRAM tools, and advanced manufacturing systems.
This bottleneck matters because semiconductor capacity cannot expand without the specialized equipment needed to build and operate fabs. Even if chipmakers have the capital and construction plans ready, delays in precision parts can slow production timelines.
The equipment shortage also reflects the complexity of the chip industry. Advanced semiconductor tools depend on highly specialized components, often sourced from a limited number of suppliers. As AI, memory, and advanced logic demand all grow at once, these supply chains are becoming increasingly difficult to manage.
Google reportedly considers CoWoS backup for 2027 TPU packaging
Advanced packaging remains one of the most important battlegrounds in AI chip development. Google’s future TPU project, known as Humufish, is expected to use Intel’s EMIB-T packaging technology in partnership with MediaTek.
However, industry speculation suggests Google may also be considering CoWoS as a backup option for 2027 if substrate yield challenges persist. EMIB-T yields are said to be improving, but dedicated substrates reportedly remain difficult to produce at scale.
For now, EMIB-T is still expected to remain the primary plan. There is still time before 2027 production, and switching to or adding a second packaging approach could increase costs and complexity.
The situation underscores how vital advanced packaging has become for AI accelerators. Performance gains are no longer coming only from smaller transistors. Packaging technologies that connect compute dies, memory, and substrates efficiently are now central to AI chip performance, power efficiency, and manufacturing scale.
China researchers outline DUV-based path toward sub-3nm GAA chips
China’s Institute of Microelectronics under the Chinese Academy of Sciences has outlined an early-stage technical path toward sub-3nm gate-all-around devices without using EUV lithography.
The approach relies on DUV lithography and stacked nanosheet-channel GAA CMOS technology. Chief engineer Ye Tianchun said process optimization produced improved Ion/Ioff performance, with reported values reaching 9.7×10 and 7.6×10 in specific results.
This work is best viewed as technology validation rather than a sign of near-term mass production. Major challenges remain in integration, yield, cost, and manufacturing consistency. Still, the research is significant because it shows how Chinese semiconductor teams are exploring alternative routes around EUV constraints.
Gate-all-around transistor technology is widely viewed as a key step for future advanced nodes. If researchers can improve performance and manufacturability using DUV-based methods, it could offer another possible path for advanced chip development, though commercial readiness remains a long-term challenge.
Beijing to impose strict civilian drone restrictions in November
Beijing will introduce its toughest civilian drone restrictions yet starting November 15, 2026. The entire municipality will be designated as controlled airspace, and the rules will ban drone flights as well as possession, storage, and transport of drones and core components.
The revised policy also requires existing equipment to be removed from the city before the deadline. Authorities are offering limited subsidies for buybacks and scrapping, with lower compensation rates after October 31. Free EMS shipment out of the city will also be available.
The new rules represent a sharp tightening of drone management in China’s capital. By expanding restrictions beyond flight activity to include storage and transport, Beijing is taking a broader approach to controlling unmanned aerial systems in sensitive urban airspace.
AI demand is reshaping the global technology landscape
The week’s biggest semiconductor and AI developments all point in the same direction: demand is rising faster than supply chains can comfortably support.
Memory companies are racing for engineering talent. Cloud providers are increasing investments in custom AI chips. Advanced packaging choices are becoming strategic decisions. Semiconductor equipment suppliers are facing long component delays. Researchers are searching for new ways to push chip technology forward, while governments are tightening controls around emerging technologies such as drones.
The AI boom is no longer confined to software or data centers. It is transforming manufacturing, logistics, chip design, memory architecture, robotics, and national technology policy. As investment continues, the companies that can solve supply constraints, integrate complex systems, and deliver efficient AI hardware at scale will be best positioned for the next phase of growth.
