When discussing quality power supplies for mainstream gaming PCs, the Super Flower brand often emerges as a front-runner. The company continues to produce some of the market’s most reliable power supply units (PSUs). One of their latest offerings is the Combat FG series, squarely targeted at the mainstream gaming audience. In this article, we review the Super Flower Combat FG 850W power supply to see if it lives up to the company’s reputation.
Features and Specifications of the Super Flower Combat FG 850W
The Combat FG series comprises PSUs with varying power outputs: 650W, 750W, and 850W. Super Flower has designed these units with the modern user in mind, supporting current standards such as ATX 3.1 while also providing options in both black and white color schemes. The Combat FG units are fully modular and boast sleek designs that enable flexible system builds and easier cable management.
The specific 850W model we’re looking at offers a maximum DC output of 850 watts and is equipped with active power factor correction (PFC). This 80 PLUS GOLD certified PSU has demonstrated efficiency ratings of 87% at full load and 90% at half load when operating on 240 volts. Furthermore, it operates within a temperature range of 0-40°C and complies fully with Intel’s C6 and C7 power states, as well as ATX 3.1 and EPS 12V (V2.92) standards.
The Combat FG 850W guarantees safety with various protections, including:
– Over Voltage Protection
– Over Power Protection
– Over Temperature Protection
– Over Current Protection
– Short Circuit Protection
All these features come packaged in a compact ATX form factor — 140mm by 150mm by 86mm — making it suitable for a range of PC cases, including those that cannot accommodate larger units. Ventilation and cooling are entrusted to a 120mm fluid dual-bearing (FDB) fan engineered for high airflow and low noise operation.
The unit carries a 10-year warranty and is currently priced at $109.99, which appears to be competitive given its features and the current market rates for similar 750W ATX 3.1 units.
Unboxing and Design
Super Flower uses sturdy packaging for the Combat FG 850W PSU, ensuring it arrives safely to customers. The box clearly showcases the PSU’s power rating and certifications, including the 80 Plus Gold efficiency and ATX 3.1 Certification, and teases its compatibility with PCIe 5.1.
Included in the box are the power supply unit, a manual, a set of screws for mounting, and the modular cables, all neatly arranged. The PSU is protected in a cloth wrap, emphasizing the premium nature of the product.

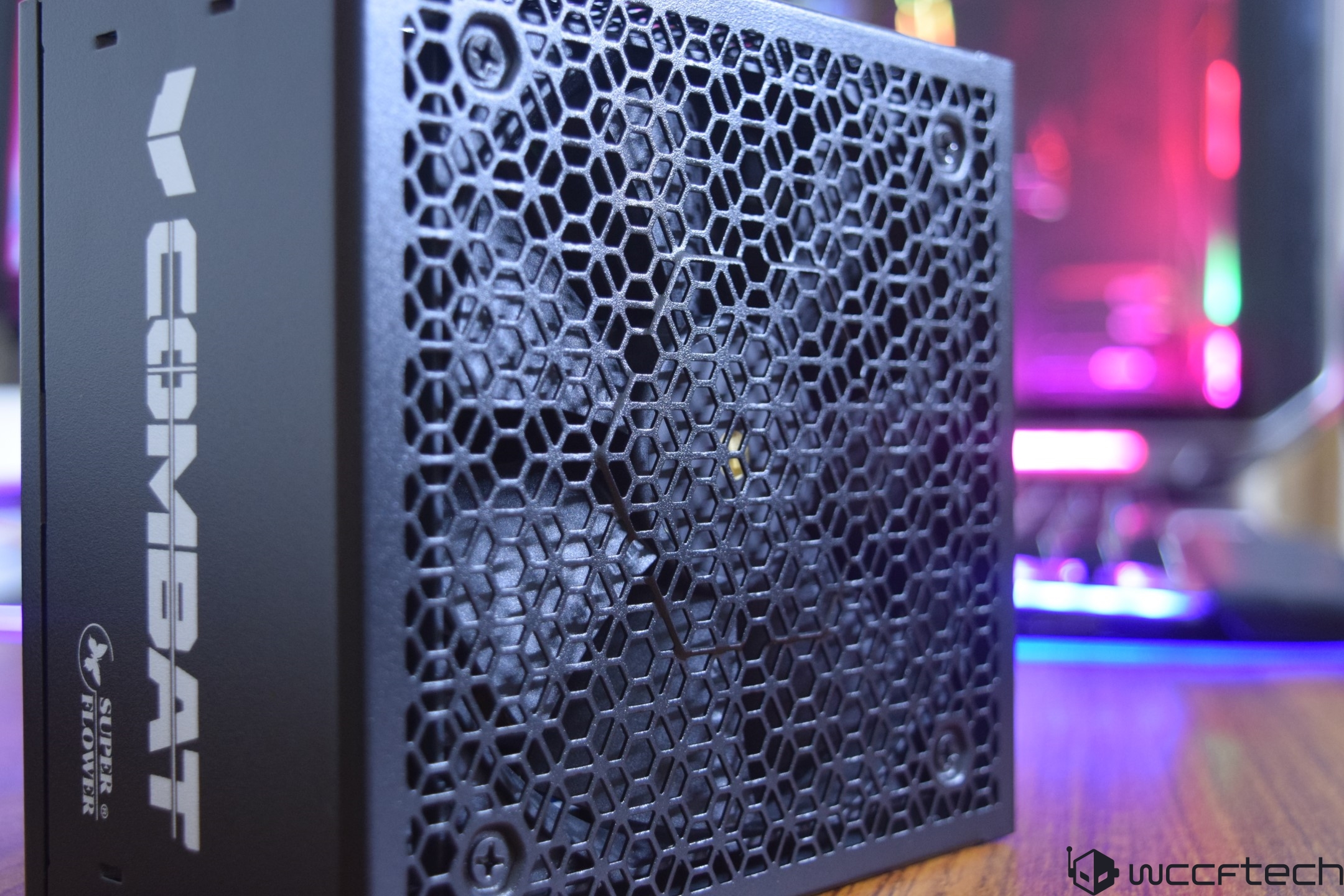

The Combat FG 850W PSU features a minimalist design with prominent Combat FG series branding on the sides. The back panel includes the power socket, a power switch, and an exhaust vent for heat dissipation.
Cable Connectors and Setup
The PSU features a comprehensive set of connectors catering to diverse needs:
– Two 8-pin CPU connectors
– Four PCI-e 8-pin connectors
– One ATX 24-pin connector
– Four 6-pin connectors for peripherals
The included cables are similarly well-equipped, featuring:
– ATX 20+4 pin cable
– Two 4+4 pin CPU cables
– Single 16-pin PCIe cable
– Two PCIe 6+2 connectors
– Three SATA connectors
– One MOLEX connector
Final Impressions
Super Flower maintains its strong reputation with the Combat FG 850W PSU. Offering robust power capacity and a host of safety features in a well-crafted design, the PSU should satisfy a broad range of PC builders. The inclusion of ATX 3.1 standards and a PCIe 16-pin adapter cable makes it forward-compatible, particularly for those eyeing the latest RTX 40 series GPUs. Priced at $109.99, the Super Flower Combat FG 850W PSU positions itself as a highly competitive option in the marketplace, especially considering similar 750W units at this price point.
In conclusion, the Combat FG series strengthens Super Flower’s position in the PSU industry, delivering reliable performance and quality with standards catered to modern gaming systems.
