Montage Technology has shifted DDR5 memory into a higher gear with a new high-end clock driver IC rated for up to 9200 MT/s, raising the ceiling for next-gen performance and stability.
DDR5 has been on a tear lately. Many client UDIMM kits are already flirting with 10,000 MT/s, while non-CUDIMM kits commonly land in the 8000–9000 MT/s range. Enthusiasts have even pushed the standard past 13,000 MT/s in extreme overclocking tests, proving there’s plenty of headroom when signal integrity is handled right.

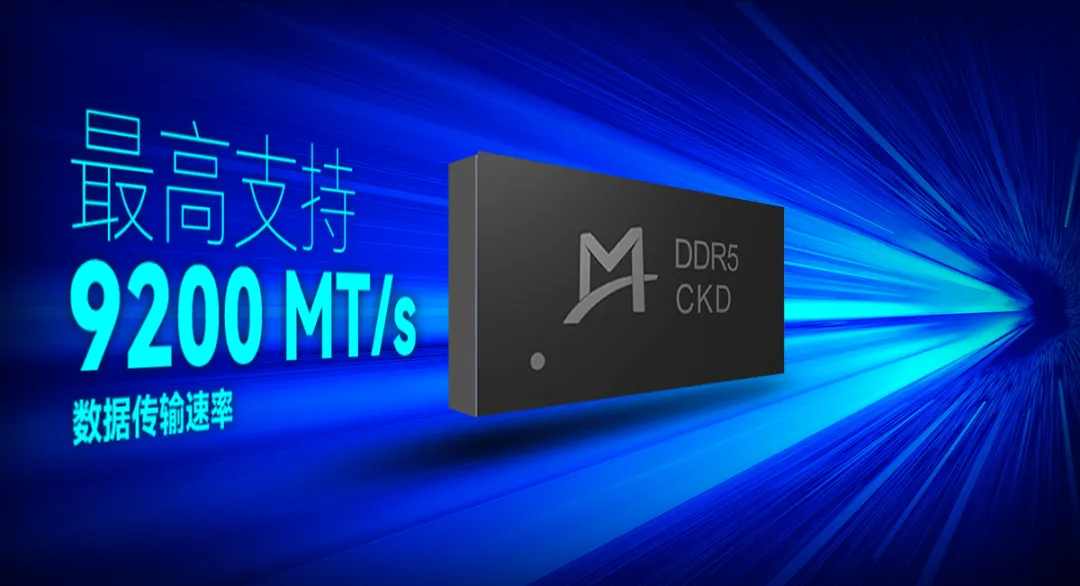

That’s exactly where Montage Technology’s latest CKD (Clock Driver) comes in. Building on its 7200 MT/s CKD introduced in 2024 for Intel Arrow Lake-S systems, the company’s new DDR5-9200 MT/s CKD leverages a low-jitter clock buffer architecture to deliver cleaner, more precise timing to DRAM devices. By improving clock distribution and synchronization between the host controller and memory chips, the CKD helps reduce skew and noise, boosting bandwidth, data stability, and overall platform reliability at high speeds.
According to Montage Technology President Stephen Tai, this new CKD addresses critical clocking challenges in high-speed DDR5 designs while laying the groundwork for higher performance and more compact client systems. The chip also supports smart power management: users can selectively disable unused output channels via software to cut dynamic power consumption—especially useful for finely tuned performance builds and mobile form factors.
The CKD is targeted at mainstream client memory modules, including DDR5 CUDIMMs, CSODIMMs, and CAMMs, enabling faster, more stable operation across diverse form factors. And it’s not just about today’s rigs. With new platforms from Intel and AMD slated for 2026—Nova Lake and Zen 6—expect broader adoption of higher-rate DDR5 and CUDIMM technology on both sides, setting the stage for even faster memory speeds and better efficiency in next-gen desktops and laptops.
Key takeaways:
– New DDR5 CKD rated up to 9200 MT/s, up from 7200 MT/s
– Low-jitter clock buffer design improves signal integrity and synchronization
– Targets DDR5 CUDIMM, CSODIMM, and CAMM modules for client systems
– Software-configurable power management reduces dynamic power by disabling unused channels
– Positioned to support today’s high-speed DDR5 and future platforms arriving in 2026
Bottom line: DDR5 isn’t done climbing. With cleaner clocks and smarter power control, Montage Technology’s 9200 MT/s CKD gives memory vendors and PC builders the tools to unlock higher frequencies and more stable performance—today and in the next wave of platforms.
