iPhone Air leak hints at clever logic board layout: A19 Pro in the camera bump, battery gets more room
The iPhone Air is rumored to come in at just 5.6mm thick, and that ultra-slim profile raised a big question: where do all those powerful components go, and how do they stay cool? Early chatter suggested Apple might be squeezing the whole logic board into the camera bump. A new leak points to a more nuanced design.

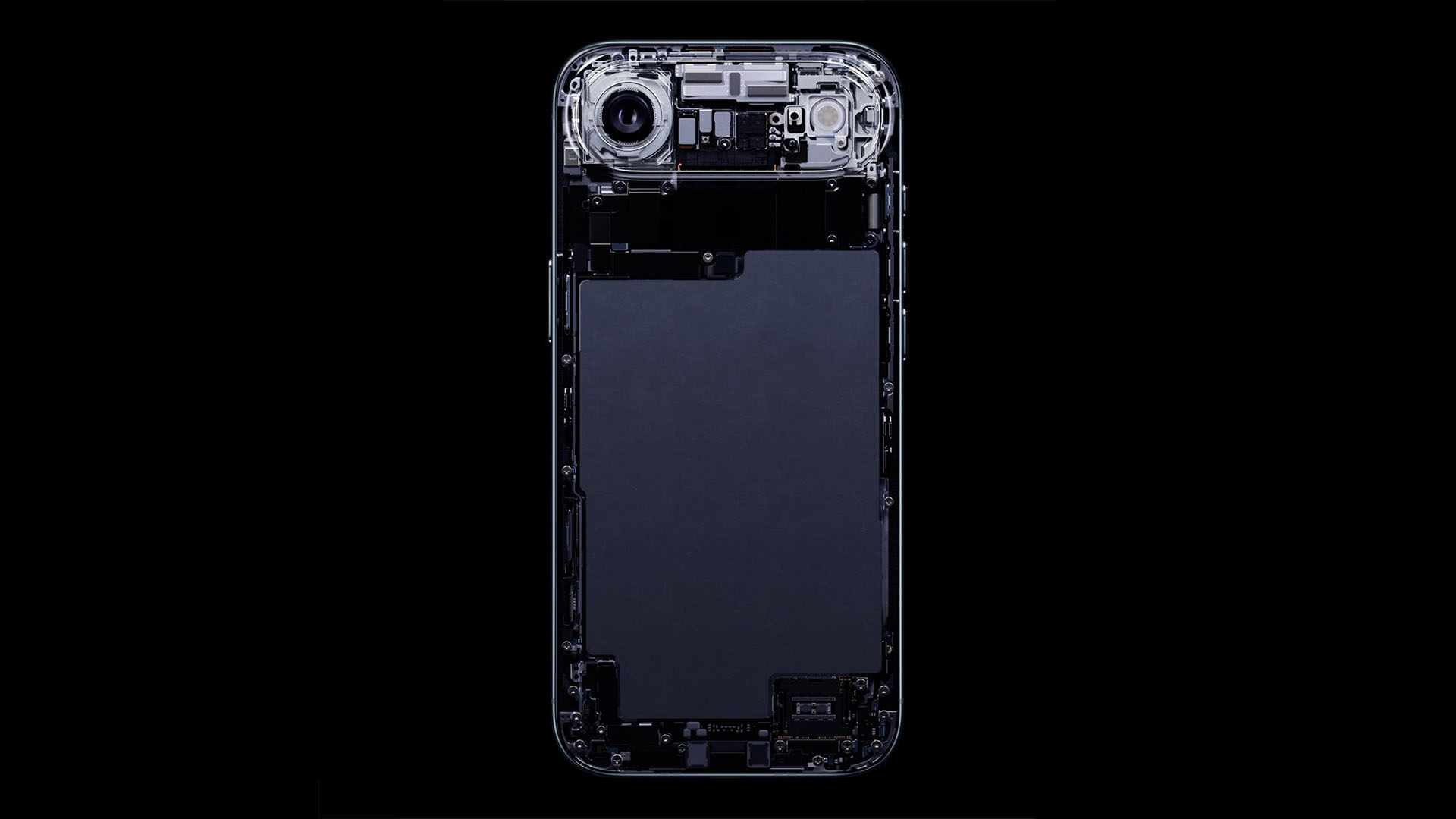

Shared schematics attributed to tipster ShrimpApplePro show a compact, stacked “sandwich” logic board where only the section housing the A19 Pro sits within the camera bump. The rest of the motherboard extends into the main chassis, where it shares space with the battery. The board itself isn’t a perfect rectangle, which makes fitting the whole thing in the bump impractical, even with aggressive space-saving techniques.
The layout also calls out Apple’s C1X 5G modem and an N1 wireless networking chip on opposite faces of the PCB. Moving to in-house wireless silicon appears to help shrink the footprint and reduce the number of external components, a common tactic to save precious internal volume in ultra-thin devices.
Why not cram the entire logic board into the bump? The camera cluster already competes for space with sensors, stabilization hardware, and thermal paths. Keeping only the A19 Pro area in the bump could shorten critical signal routes and potentially aid heat dissipation, while leaving room in the main body for a larger battery. An illustration shared on X by @BasQuxFoo imagines this hybrid placement, highlighting how the SoC section nests under the camera stack while the remaining PCB stretches alongside the battery.
If Apple continues to shrink and stack components in future generations, it’s not hard to imagine a day when the entire logic board lives inside the camera island, freeing up even more volume for battery cells and longer runtimes. For now, this rumored split design feels like a smart compromise for a 5.6mm-thin phone that still needs strong 5G performance and robust wireless connectivity.
As always, treat these details as provisional until full teardowns confirm the final layout. If this leak pans out, the iPhone Air could be a showcase of space-efficient engineering—balancing a powerful A19 Pro, custom wireless chips, and a battery-friendly interior in one of the thinnest iPhones yet.
