Researchers from ETH Zürich have made a groundbreaking advancement in robotic technology with the introduction of ANYmal, a four-legged robot that skillfully traverses complex terrain using highly sophisticated AI modules. This leap in robotic agility demonstrates an impressive level of autonomy, previously unseen in the field of robotics.
ANYmal operates with the assistance of artificial intelligence that coordinates movement, vision, and localization to proficiently navigate varied obstacles and environments. This robust use of technology allows the robotic canine to independently traverse landscapes without the need for human-aided training or lengthy computation times, marking a notable improvement from previous generations of robotic systems.
The AI that empowers the ANYmal consists of three distinct modules that work in harmony to guide the robot through challenging courses:
1. The Vision Module: Equipped with six Intel Realsense depth cameras and a Velodyne LiDAR, all controlled by a Nvidia Jetson Orin, the vision module is responsible for capturing and interpreting the robot’s surroundings. To navigate successfully underneath or towards elevated obstacles, the module reconstructs the environment in 3D based on the data collected from its scans.
2. The Movement Module: Boasting five key actions—climb down, climb up, crouch, jump, and walk—this module prepares the robot for various physical challenges. Through rigorous training, including scenarios such as crouching beneath progressively lower obstacles or jumping across increasing gaps, the virtual robot hones its skills to adapt to a multitude of surfaces.
3. The Navigation Module: Integrating the information from the vision module, it determines the heading, position, and timing required to execute each movement. After extensive training over 3,000 test courses, the module proved its efficacy with a success rate of over 96% in simulated navigation tasks.

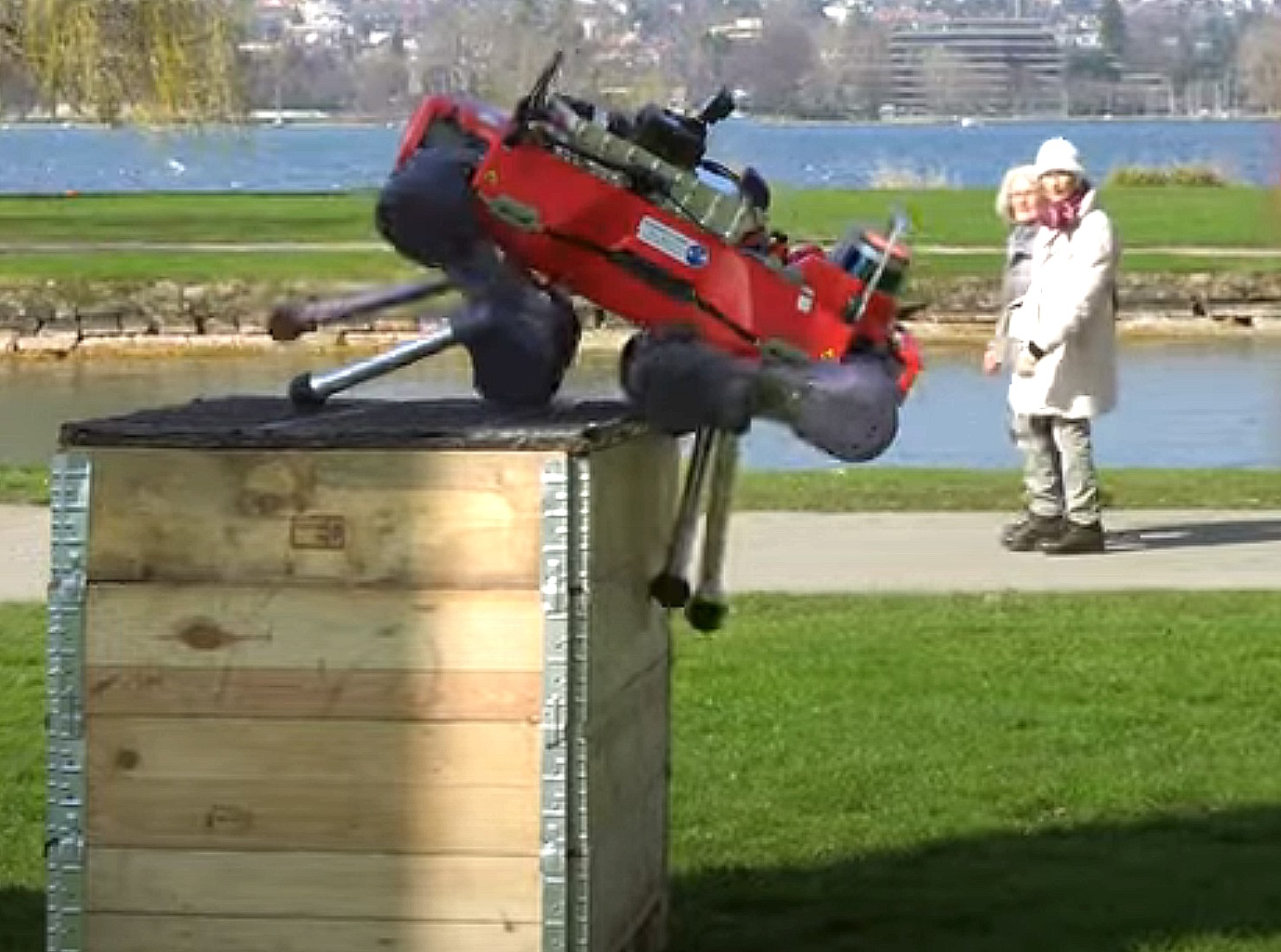

The culmination of this training was put to the test on the ANYmal D robot, a 55 kg machine powered by twin Intel i7 CPUs, 8GB RAM, and a 240 GB SSD. Footage of the ANYmal conquering real-world obstacle courses reveals its rapid and precise response in overcoming strenuous terrain that challenges other robots.
The advancement of the ANYmal robot signifies a major step forward in the field of robotics. Individuals fascinated by robotics and eager to learn more or develop their skills might consider starting with a robotics kit, coupled with educational materials that delve into robot technology.
For those inspired by this remarkable feat of engineering, it serves as motivation to engage with emerging technologies that are shaping the future, such as advanced robotics and AI. Whether applied in life-saving operations or the development of immersive virtual experiences, these innovations continue to break boundaries and redefine what’s possible in the realm of technology.
