The launch of Ultra96-certified cables has revolutionized HDMI interfaces, delivering an impressive 96 Gbps bandwidth for stunning uncompressed visuals at high resolutions and refresh rates. This leap surpasses the DisplayPort 2.1’s UHBR20, which caps at 80 Gbps.
Starting in the early 2000s, HDMI evolved from providing a simple 1080p viewing experience to supporting higher resolutions and multiple audio streams. Though HDMI 2.1 already satisfies most users, the introduction of HDMI 2.2 ushers in a new era of visual brilliance.
With Ultra96 certification, HDMI 2.2 doubles its predecessor’s bandwidth from 48 Gbps to 96 Gbps. This upgrade supports extraordinary configurations, such as 4K resolution at a staggering 480Hz, ensuring almost uncompressed visual fidelity. It also opens possibilities for 8K at 240Hz, 10K at 120Hz, and even 16K at 60Hz. While widespread adoption might take time, manufacturers are already exploring this cutting-edge technology.

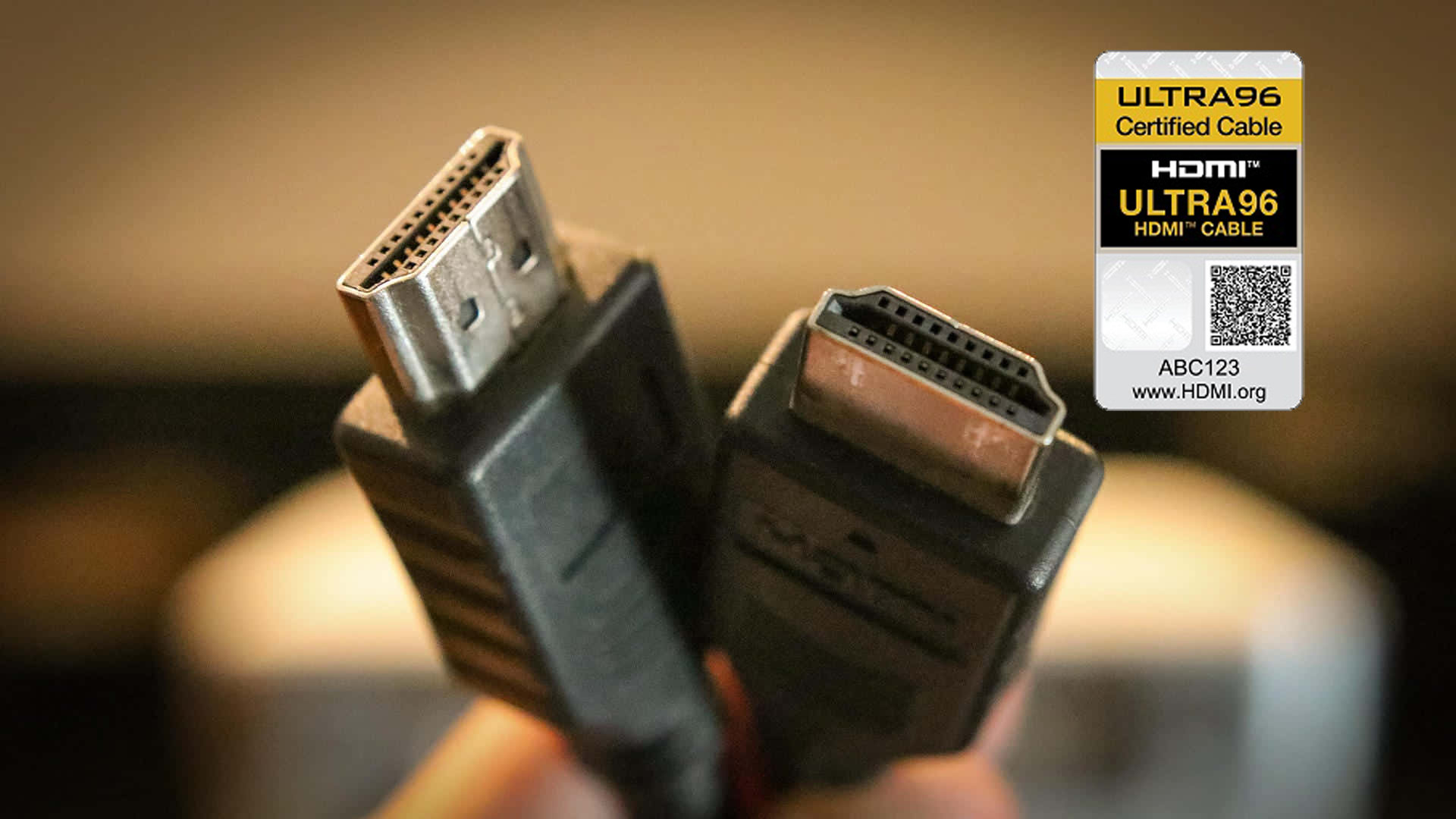

These Ultra96 cables adhere to the rigorous standards of the Ultra Cable Certification Program. This involves mandatory testing, certification, and on-cable identification to ensure authenticity and quality. Official HDMI anti-counterfeiting labels are required, safeguarding consumers with lifetime compliance audits.
To achieve HDMI 2.2 Ultra96 certification, cables must clearly display the Ultra96 label to guarantee the remarkable 96 Gbps bandwidth. Interestingly, these cables are backward compatible, meaning they can be used with HDMI 2.1 and older ports, though the peak bandwidth won’t be realized.
Currently, the next-gen AMD UDNA GPUs are among the few HDMI 2.2-compliant products, potentially capping the interface at 64 Gbps, with the possibility of an 80 Gbps limit. However, HDMI 2.1 still accommodates high-resolution and high-frame-rate demands adequately for most users, unless you’re diving into the ultra-modern realms of 16K display technology.
