Power supplies are critical components for high-end gaming PCs, workstations, and AI machines, and the demand for more powerful and reliable options is increasing. FSP has responded to this need by expanding its Hydro series with a new flagship power supply unit – the FSP Hydro PTM PRO 1350W, designed to cater to users who require substantial and dependable power delivery.
FSP Hydro PTM PRO 1350 80 PLUS PLATINUM PSU: Overview
Sticking to a traditional air-cooling design, the FSP Hydro PTM PRO 1350W is an 80+ Platinum-certified power supply, indicative of its high efficiency of 90-92% at 230V. This fully modular unit incorporates a conformal coating, enhancing its longevity by safeguarding against dust, stains, and humidity-induced corrosion.
Main Specifications
– **Rated Output Power**: 1350W
– **Form Factor**: ATX
– **Certification**: 80 PLUS Platinum
– **Efficiency**: ≥ 92%
– **Fan**: 135mm Fluid Dynamic Bearing Fan
– **Dimensions**: 150 x 180 x 86 mm
– **Protections**: Over Voltage, Under Voltage, Over Power, Over Temperature, Over Current, Short Circuit
The PSU is compatible with Intel’s latest C6 and C7 power states, can operate at temperatures ranging from 0-50°C, and comes with the IEC62638 certification.
Design and Features

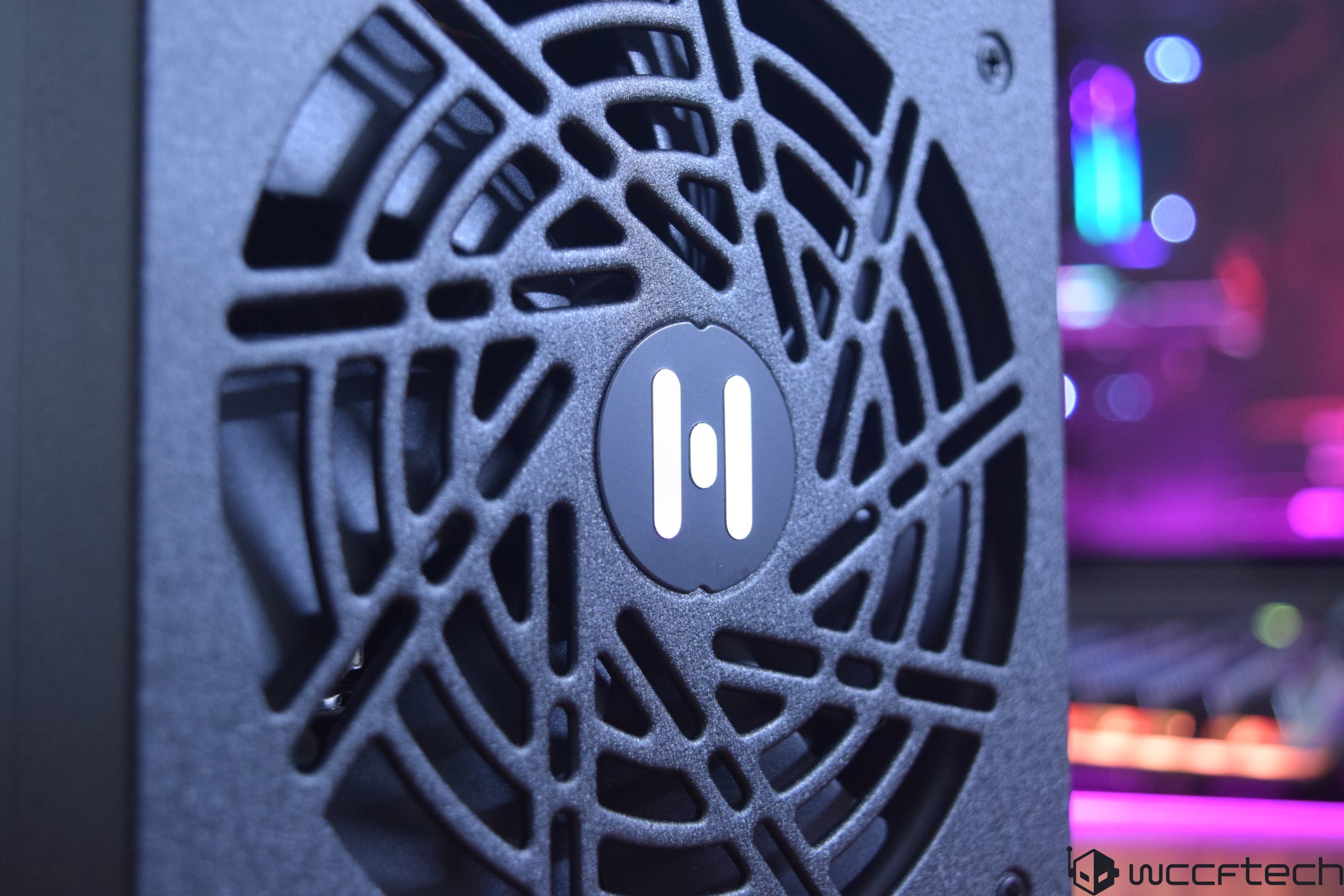

Aesthetically, the unit maintains the ATX form factor and sports a robust build. The cooling is facilitated by a 135mm top-mounted fan, which operates under semi-passive conditions. A noteworthy feature is the ‘ECO’ switch at the back, allowing the fan to be disabled to reduce power consumption slightly.
The Hydro PTM PRO 1350W is shipped with a 10-year warranty, and though the MSRP is $339.99, it is available for reduced prices online, sometimes as low as $239.69. Key features include:
– Support for Intel’s latest CPUs
– Global safety approvals
– Powerful single rail design for +12V
– Full Japanese electrolytic capacitors
– Compliance with ATX 12V V2.52 & EPS 12V v2.92 standards
– Intelligent fan speed control
– 80PLUS Platinum efficiency
Unboxing and Close-Up
Upon unboxing, the power supply is carefully nestled between foam and accompanied by a set of cables in a separate pouch, stickers for customization, a guidebook, and screws for case mounting.
Observing the PSU interior reveals top-tier components such custom FETs, mixing Chemi-con & Rubycon capacitors, dual bridge rectifiers, and meticulous soldering, all indicating a commitment to quality and durability.
Connectivity and Power Distribution
The supply offers various connectors to suit different needs:
– Two 8-pin CPU connectors
– PCI-e and ATX connectors
– Extra connectors for peripherals
The unit promises efficient power distribution with adequate maximum output across different rails, especially the 12V rail capable of 112.5A and 1350W.
Performance and Suitability
The FSP Hydro PTM PRO 1350W PSU is designed for the periphery of PC power needs. While the majority of gamers may find a 1000-1200W PSU sufficient, this 1350W supply caters specifically to workstations with heavy-duty usage, such as multi-GPU setups for intensive computing, content creation, and AI processing workloads.
Most notably, this model enhances power provision by an additional 150W and includes two PCIe Gen5.1 12V-2×6 connectors, capable of powering demanding components such as two RTX 4090 GPUs.
For users requiring even more power, FSP plans to introduce the Cannon Pro 2500W model, equipped with quadruple 12V connectors.
Final Impressions
The realm of 1200W+ PSU range is becoming more relevant with the evolving demands of computing power. The FSP Hydro PTM PRO 1350W PSU is not only a high-performance unit but also one that offers reliability and flexibility for high-end workstations. The Hydro PTM PRO series represents FSP’s commitment to quality and their product stands as a competitive and compelling choice for users seeking a premium power supply solution.
